Description
Brand - ZEN
Item Number - TP201 ZEN
Category - Thermoplastic Pillow Blocks (TP)

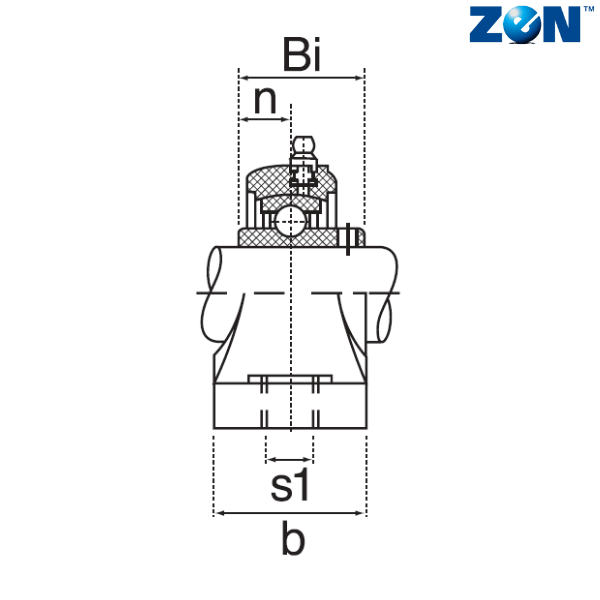

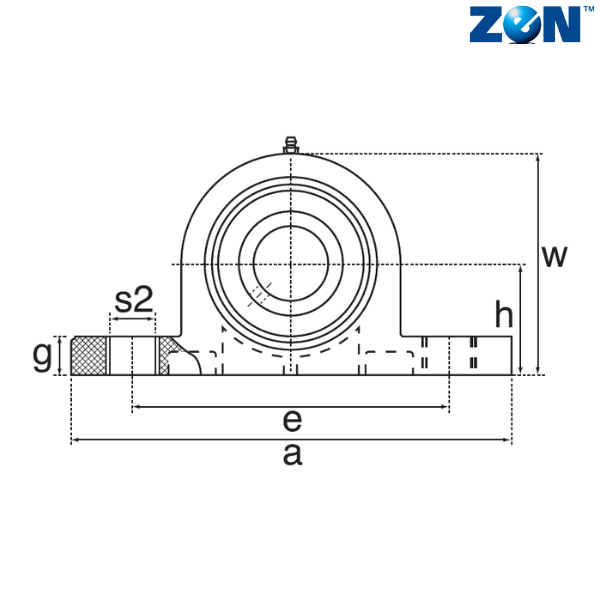

Base to Center Height (h) mm - 33.3
Overall Length (mm) - 127
Bolt Center to Center Length (e) mm - 95
b (mm) - 38
S1 (mm) - 11
S2 (mm) - 14
g (mm) - 14.2
Overall Height (w) mm - 65.6
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.12
Bearing - SUC201

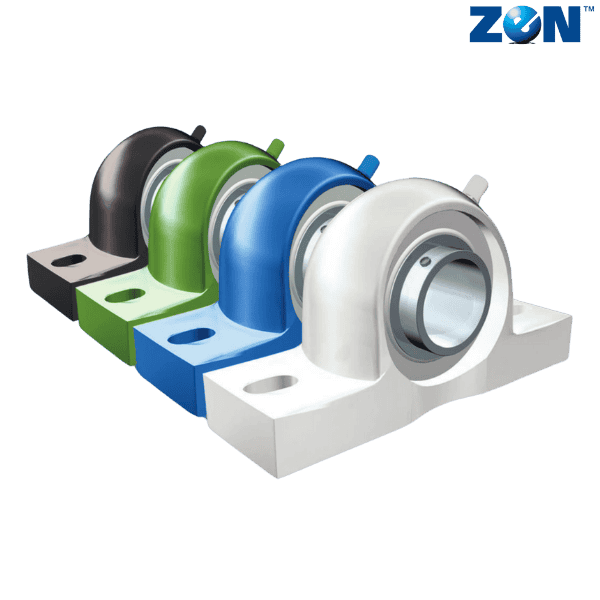

** Images are for representation purposes only
