Description
Brand - INA
Item Number - TKVD35-W-U-G3-L1230-15/15 INA
Category - Profile Rail
Outer (D) MM - 90
Width (B) MM - 1230
Outer (D) Inch - 3.5433
Width (B) Inch - 48.4252
Weight (kg) - 21.402
U - For Linear Ball Bearing Unit And Four-Row Linear Recirculating Ball Guidance System, For Screw Mounting From Below
G3 - Accuracy Class 3

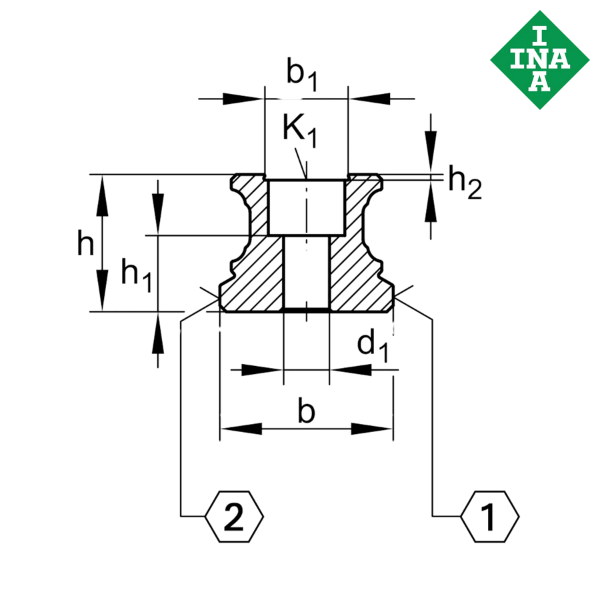

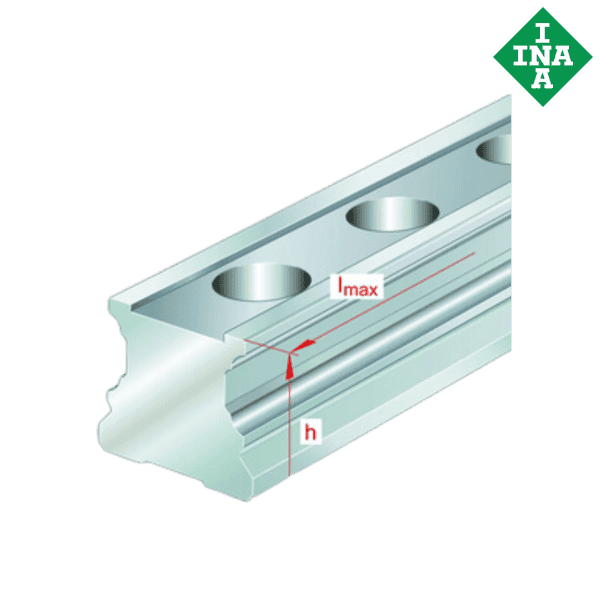

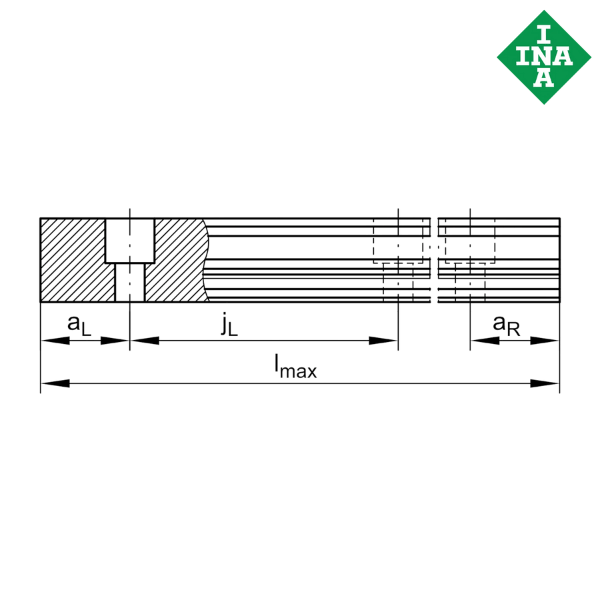

** Images are for representation purposes only
