Description
Brand - ZEN
Item Number - TFL212 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

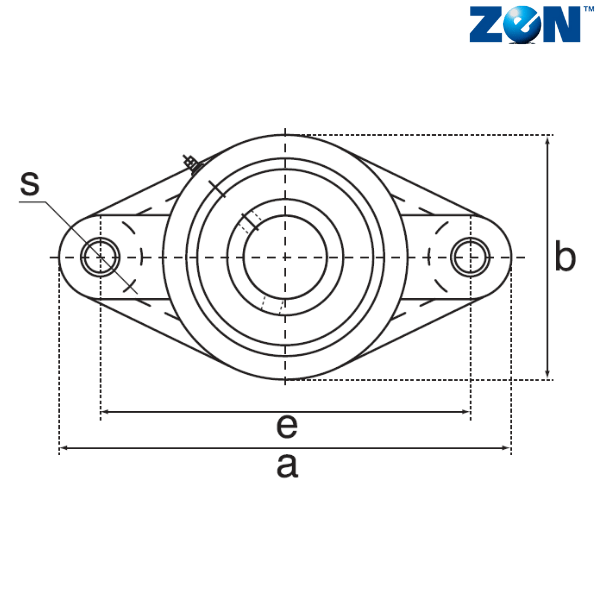

Overall Length (a) mm - 250
Bolt Center to Center Length (e) mm - 202
Width (b) mm - 140

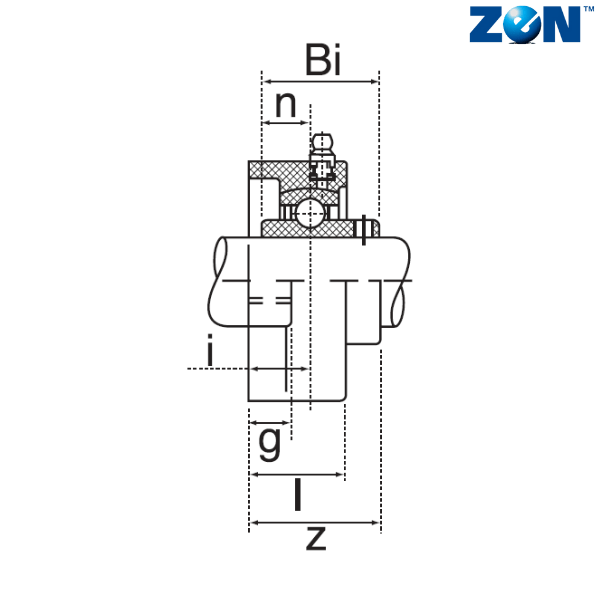

g (mm) - 20
l (mm) - 48
s (mm) - 19
z (mm) - 68.7
i (mm) - 29
Bi (mm) - 65.1
n (mm) - 25.4
Weight (kg) - 1.6
Bearing - SUC212

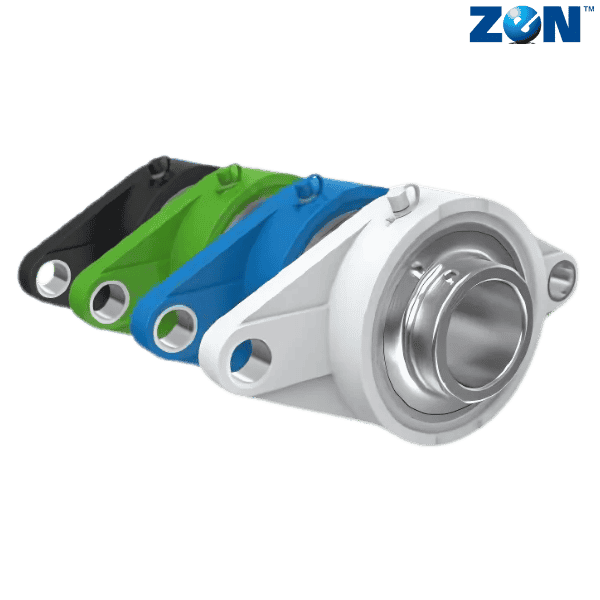

** Images are for representation purposes only
