Description
Brand - ZEN

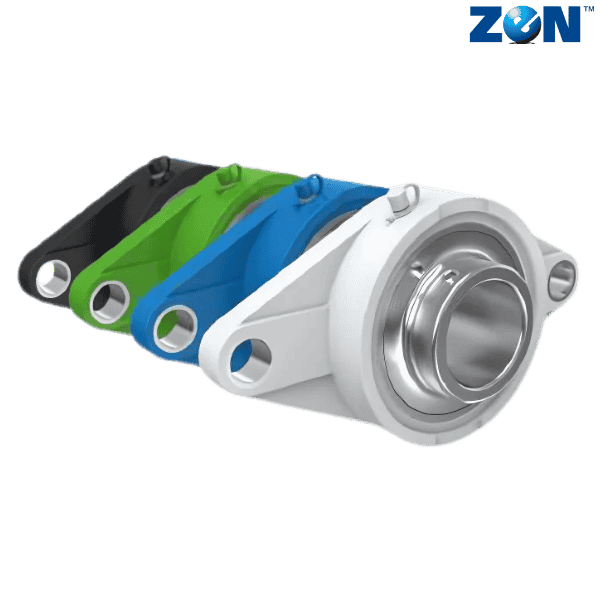

Item Number - TFL211 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

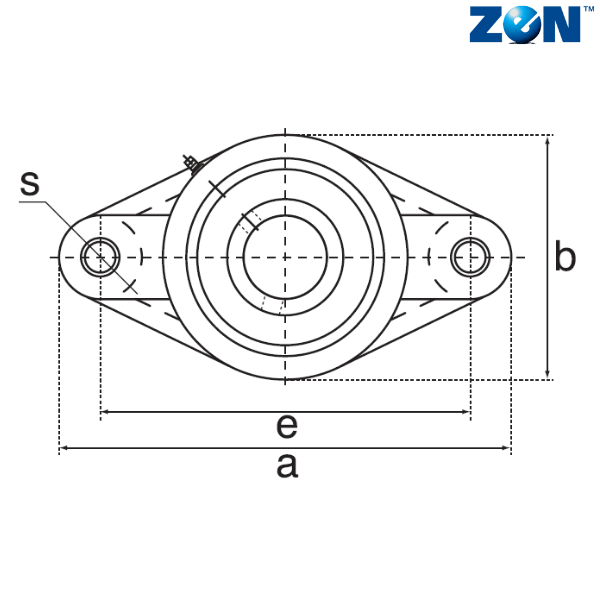

Overall Length (a) mm - 226
Bolt Center to Center Length (e) mm - 185
Width (b) mm - 129

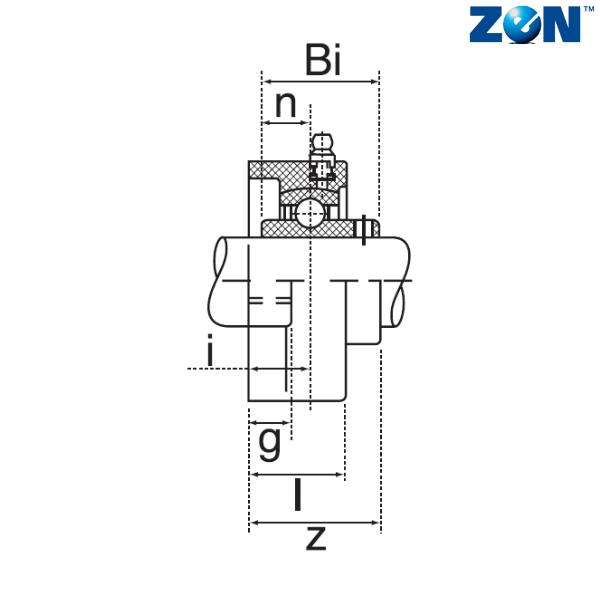

g (mm) - 20
l (mm) - 43
s (mm) - 19
z (mm) - 58.4
i (mm) - 25
Bi (mm) - 55.6
n (mm) - 22.2
Weight (kg) - 1.4
Bearing - SUC211
** Images are for representation purposes only
