Description
Brand - ZEN
Item Number - TFL210 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

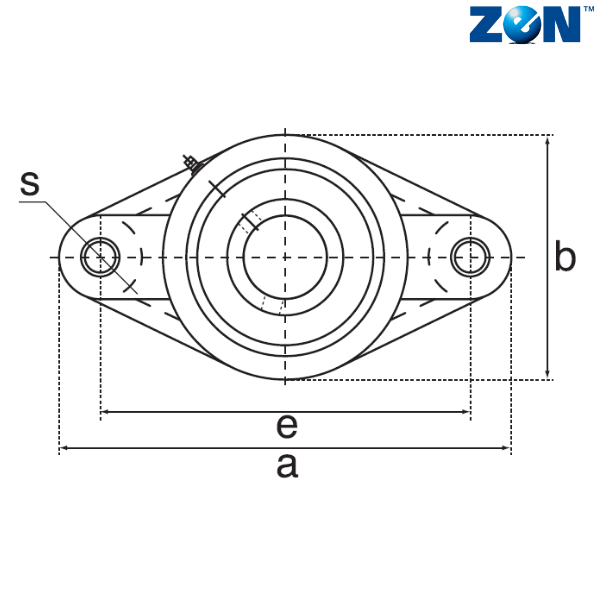

Overall Length (a) mm - 197
Bolt Center to Center Length (e) mm - 157
Width (b) mm - 115

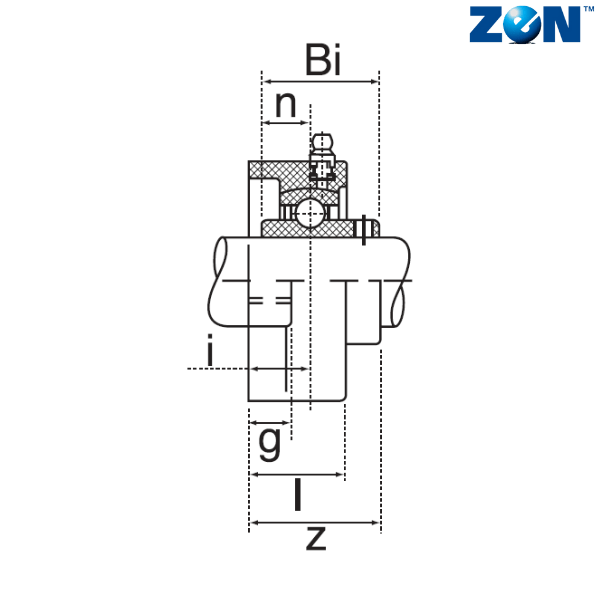

g (mm) - 21
l (mm) - 43
s (mm) - 17
z (mm) - 57.6
i (mm) - 25
Bi (mm) - 51.6
n (mm) - 19
Weight (kg) - 0.42
Bearing - SUC210

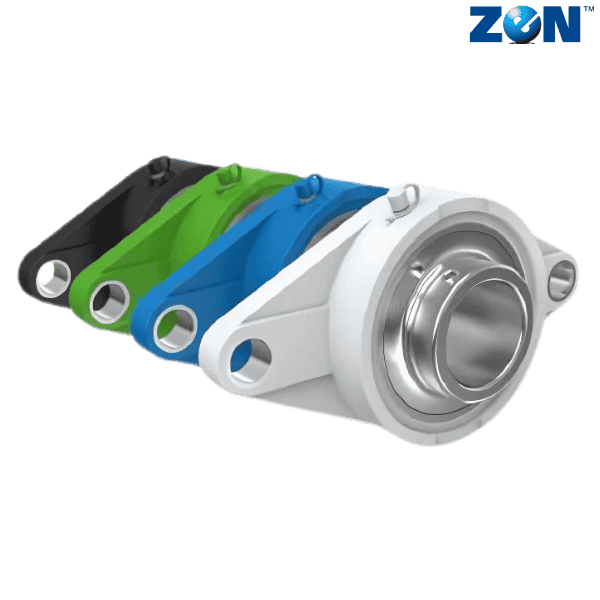

** Images are for representation purposes only
