Description
Brand - ZEN

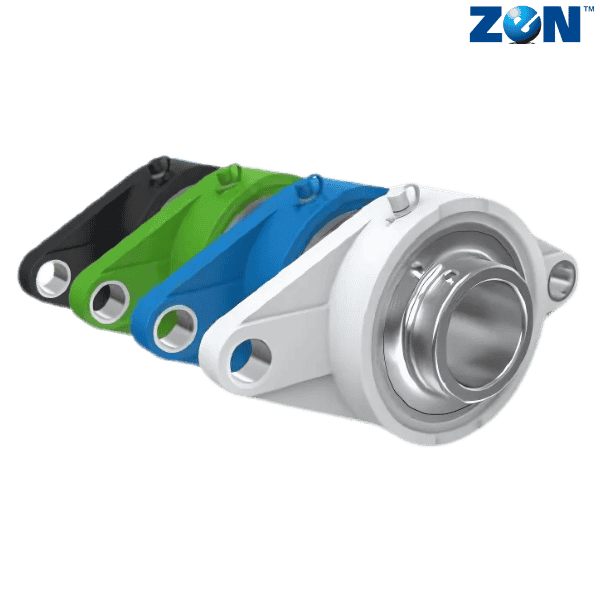

Item Number - TFL209 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

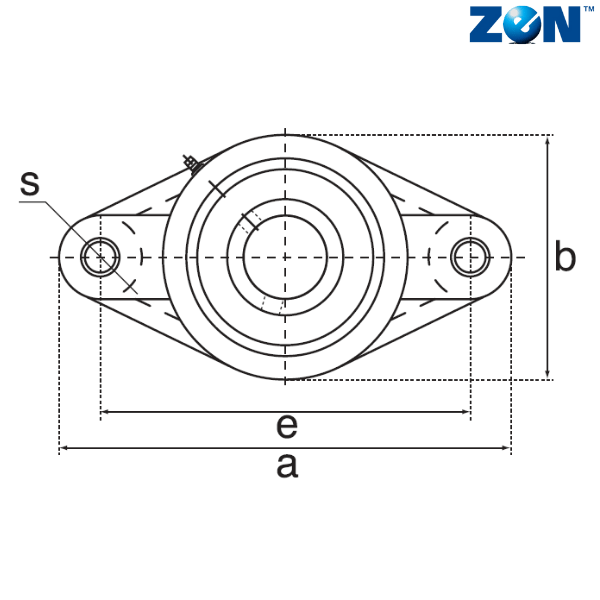

Overall Length (a) mm - 188
Bolt Center to Center Length (e) mm - 149
Width (b) mm - 108

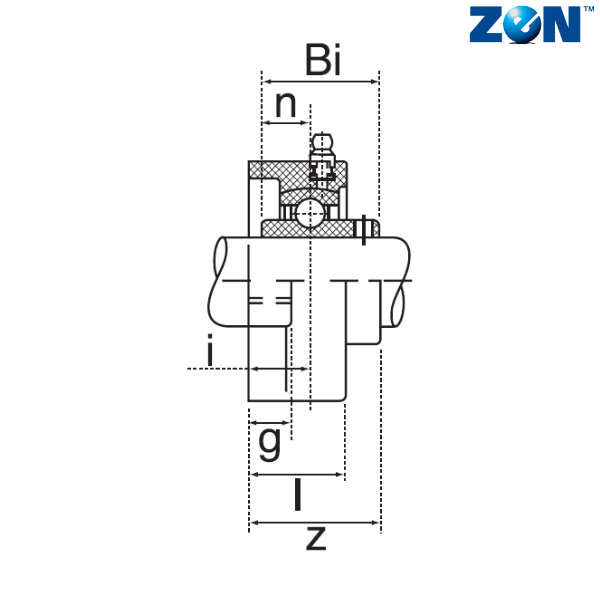

g (mm) - 21
l (mm) - 41
s (mm) - 17
z (mm) - 54.2
i (mm) - 24
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.32
Bearing - SUC209
** Images are for representation purposes only
