Description
Brand - ZEN
Item Number - TFL208 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

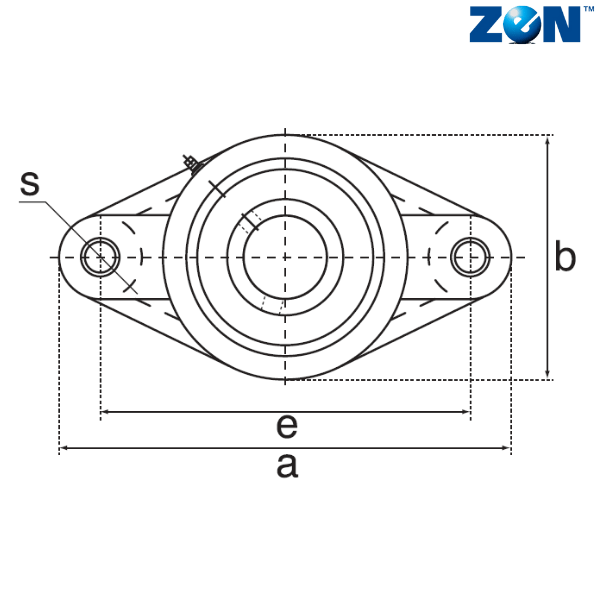

Overall Length (a) mm - 176
Bolt Center to Center Length (e) mm - 144
Width (b) mm - 100

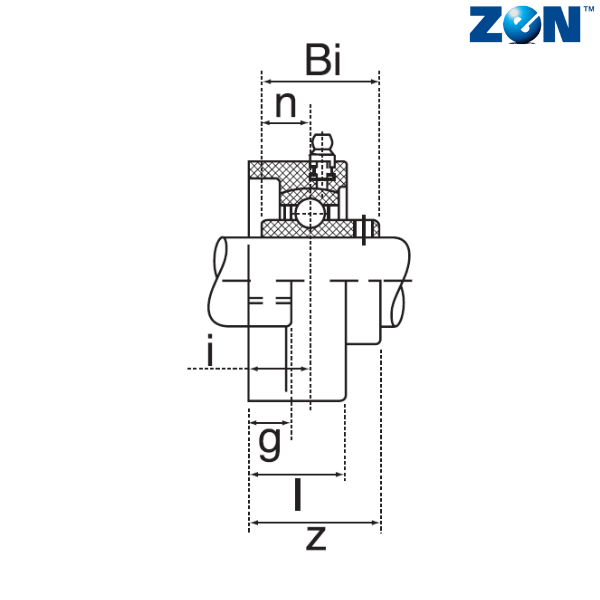

g (mm) - 17.21
l (mm) - 35
s (mm) - 14
z (mm) - 51.7
i (mm) - 21.5
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.24
Bearing - SUC208

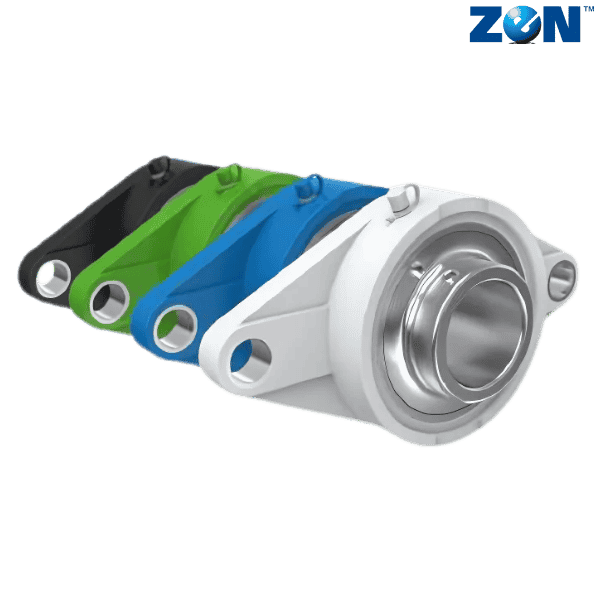

** Images are for representation purposes only
