Description
Brand - ZEN
Item Number - TFL207 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

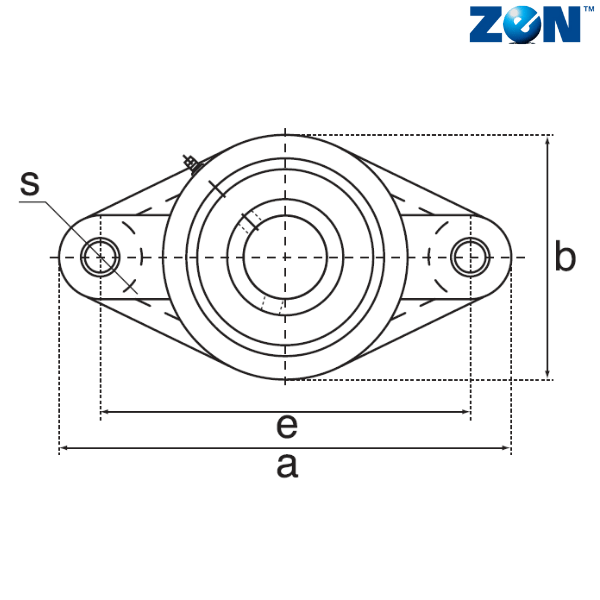

Overall Length (a) mm - 164
Bolt Center to Center Length (e) mm - 130
Width (b) mm - 90
g (mm) - 15.5
l (mm) - 32
s (mm) - 13
z (mm) - 44.4
i (mm) - 19
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 0.16
Bearing - SUC207

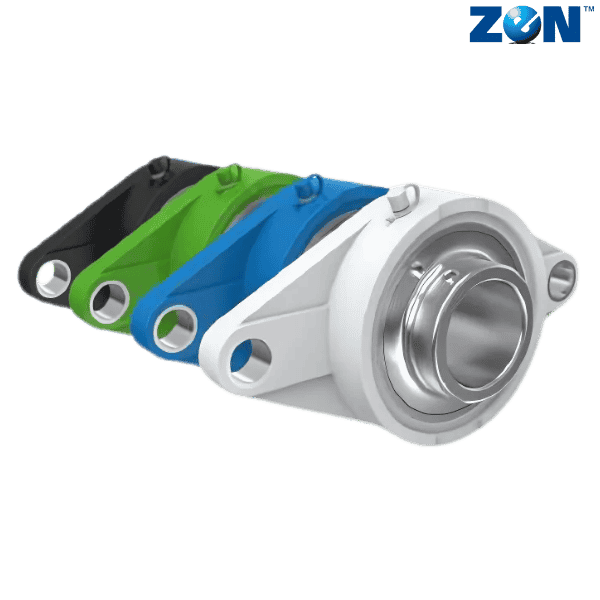

** Images are for representation purposes only
