Description
Brand - ZEN
Item Number - TFL206 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

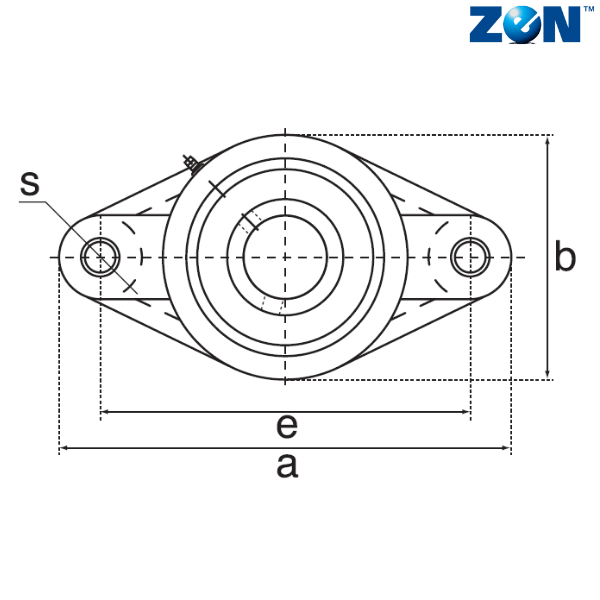

Overall Length (a) mm - 148
Bolt Center to Center Length (e) mm - 117
Width (b) mm - 80

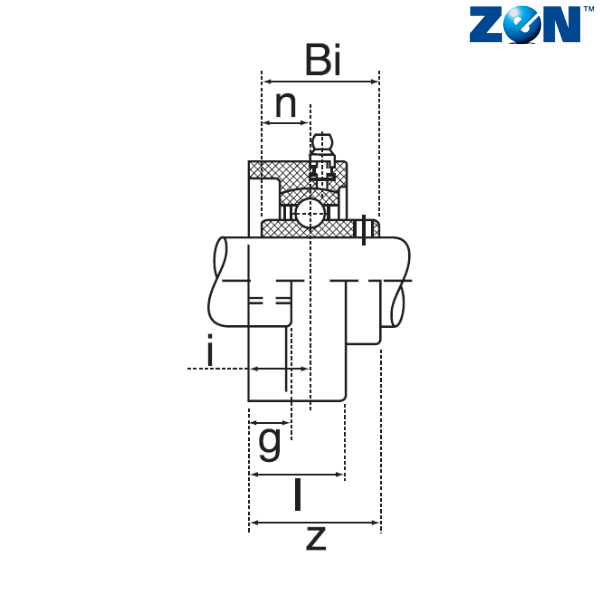

g (mm) - 14.3
l (mm) - 30.5
s (mm) - 11
z (mm) - 40.2
i (mm) - 19
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 0.13
Bearing - SUC206

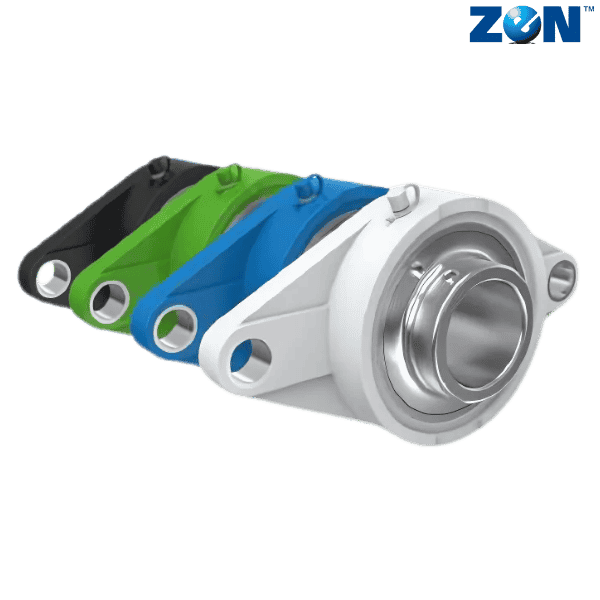

** Images are for representation purposes only
