Description
Brand - ZEN
Item Number - TFL205 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

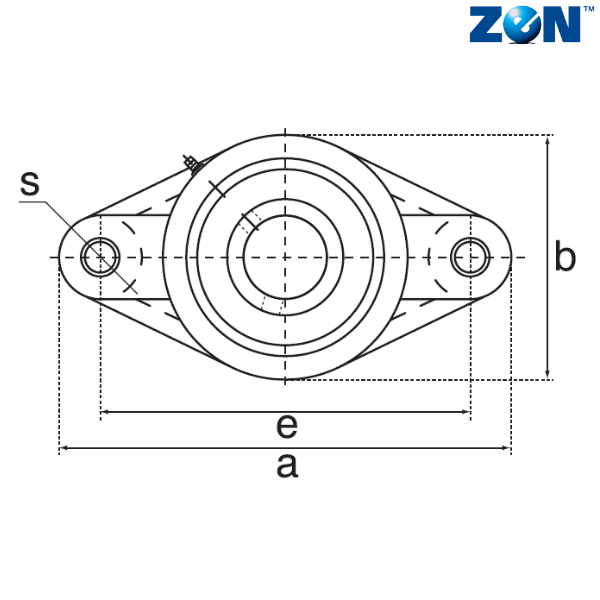

Overall Length (a) mm - 134
Bolt Center to Center Length (e) mm - 99
Width (b) mm - 70
g (mm) - 14.3
l (mm) - 28
s (mm) - 11
z (mm) - 36.2
i (mm) - 17
Bi (mm) - 34
n (mm) - 14.3
Weight (kg) - 0.1
Bearing - SUC205

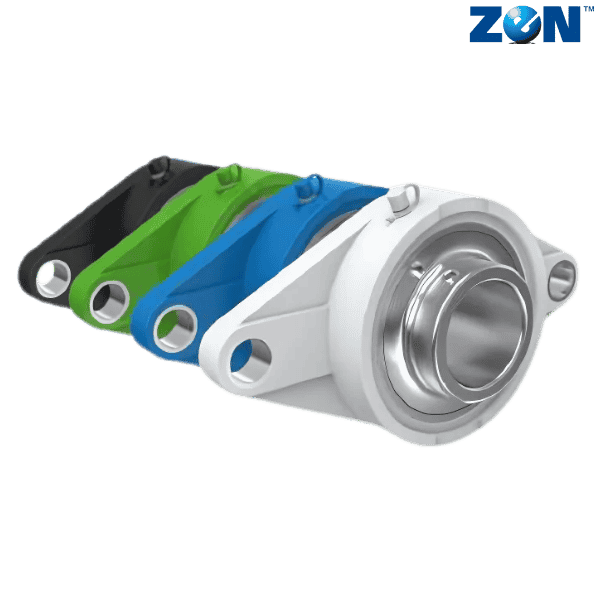

** Images are for representation purposes only
