Description
Brand - ZEN
Item Number - TFL201 ZEN
Category - Thermoplastic Pillow Blocks (TFL)

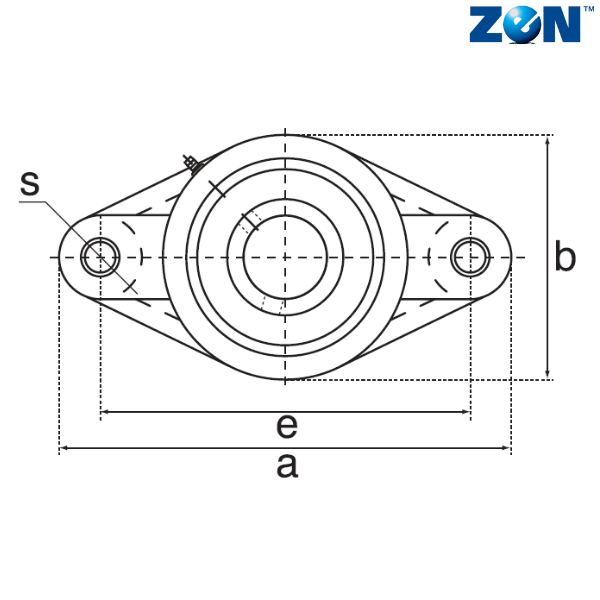

Overall Length (a) mm - 113
Bolt Center to Center Length (e) mm - 90
Width (b) mm - 65

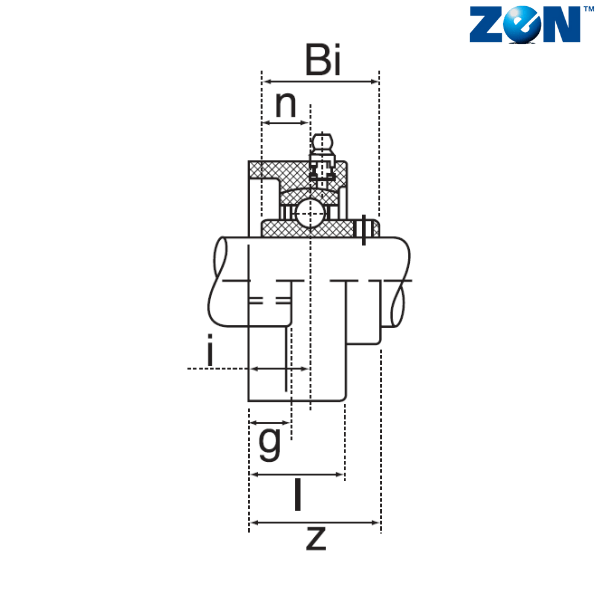

g (mm) - 13.4
l (mm) - 26.5
s (mm) - 11
z (mm) - 33.3
i (mm) - 15.4
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.08
Bearing - SUC201

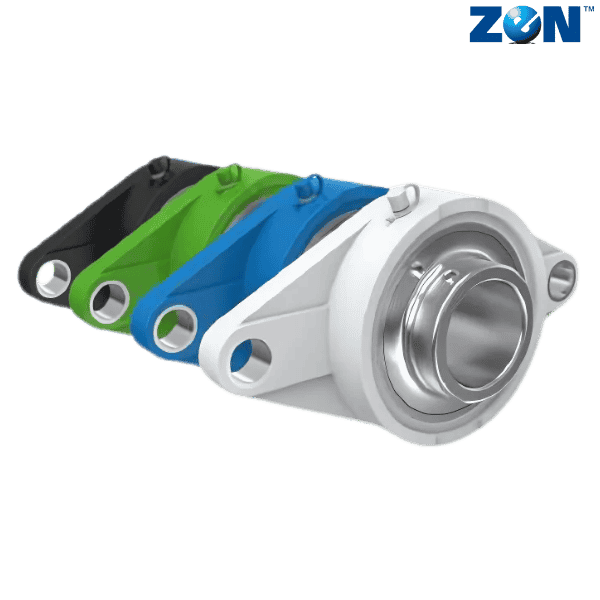

** Images are for representation purposes only
