Description
Brand - ZEN
Item Number - TF209 ZEN
Category - Thermoplastic Pillow Blocks (TF)

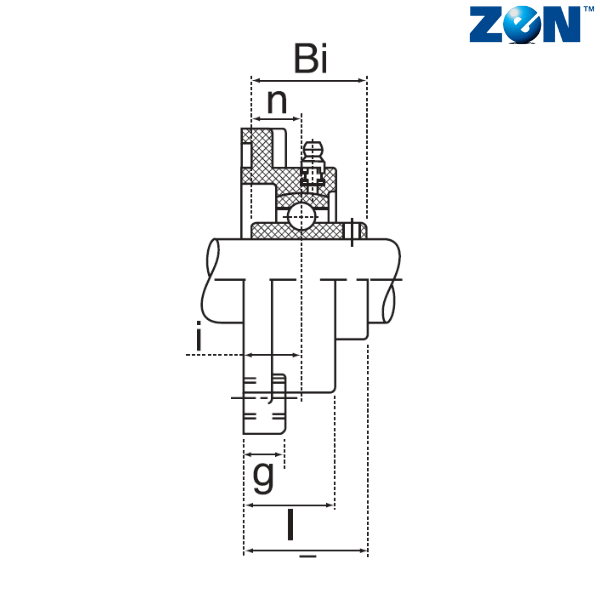

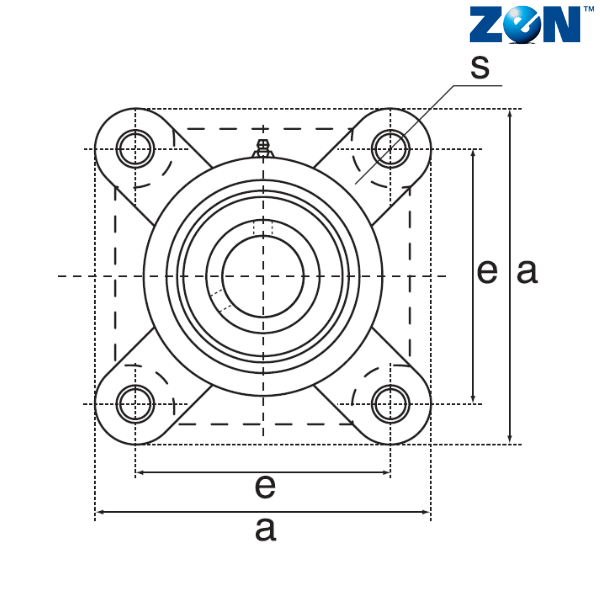

Overall Length (a) mm - 137
Bolt Center to Center Length (e) mm - 105
g (mm) - 19
l (mm) - 41
s (mm) - 17
z (mm) - 54.2
i (mm) - 24
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.42
Bearing - SUC209
** Images are for representation purposes only
