Description
Brand - ZEN
Item Number - TF208 ZEN
Category - Thermoplastic Pillow Blocks (TF)

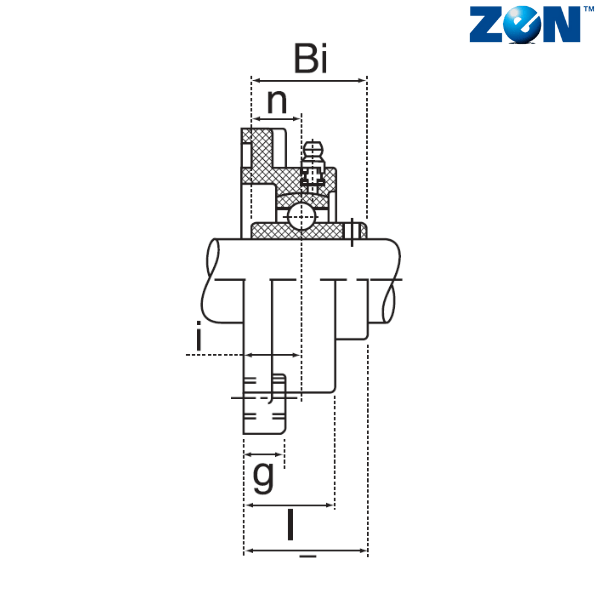

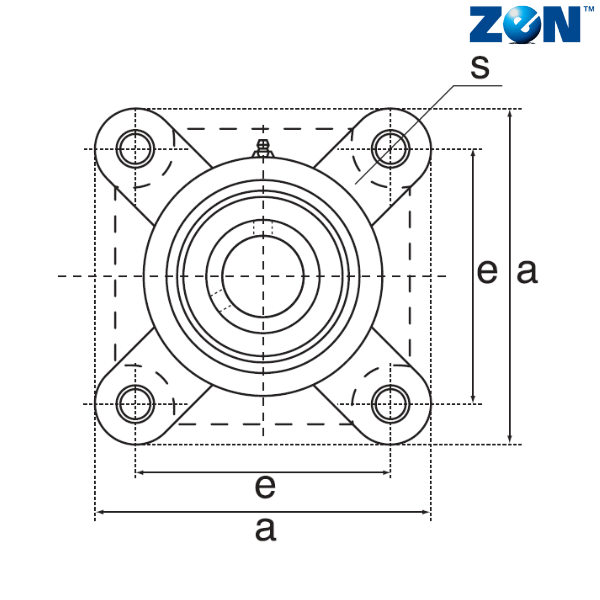

Overall Length (a) mm - 130
Bolt Center to Center Length (e) mm - 102
g (mm) - 17
l (mm) - 37.5
s (mm) - 14
z (mm) - 53.2
i (mm) - 23
Bi (mm) - 49.2
n (mm) - 19
Weight (kg) - 0.33
Bearing - SUC208

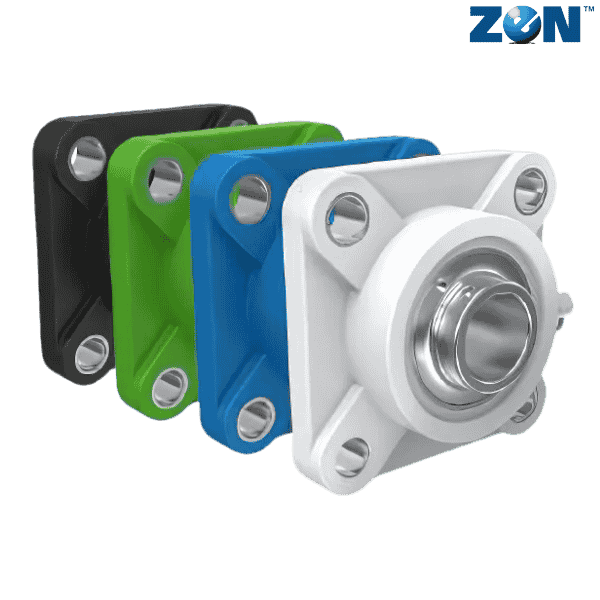

** Images are for representation purposes only
