Description
Brand - ZEN
Item Number - TF207 ZEN

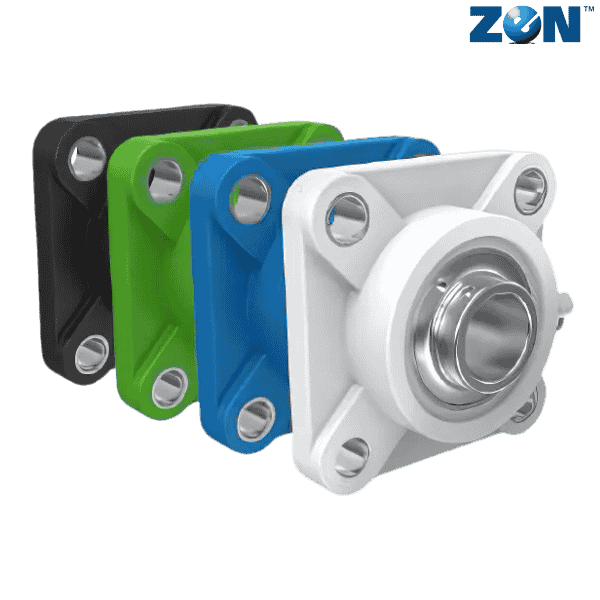

Category - Thermoplastic Pillow Blocks (TF)

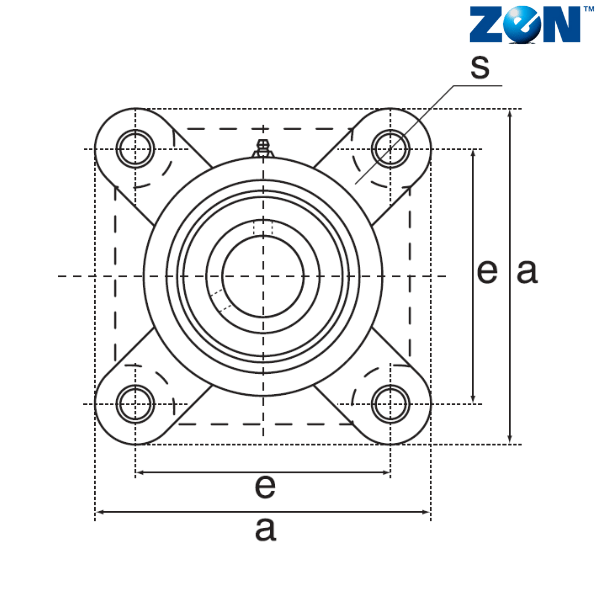

Overall Length (a) mm - 118
Bolt Center to Center Length (e) mm - 92

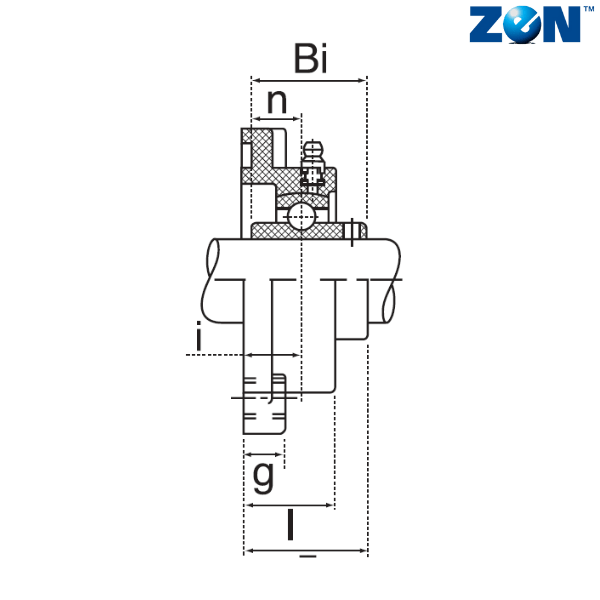

g (mm) - 15.5
l (mm) - 34.8
s (mm) - 13
z (mm) - 46.9
i (mm) - 21.5
Bi (mm) - 42.9
n (mm) - 17.5
Weight (kg) - 0.26
Bearing - SUC207
** Images are for representation purposes only
