Description
Brand - ZEN
Item Number - TF206 ZEN
Category - Thermoplastic Pillow Blocks (TF)

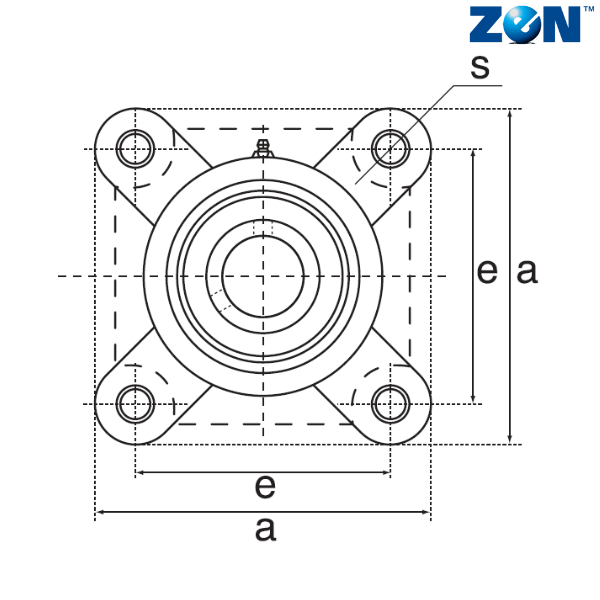

Overall Length (a) mm - 107
Bolt Center to Center Length (e) mm - 83

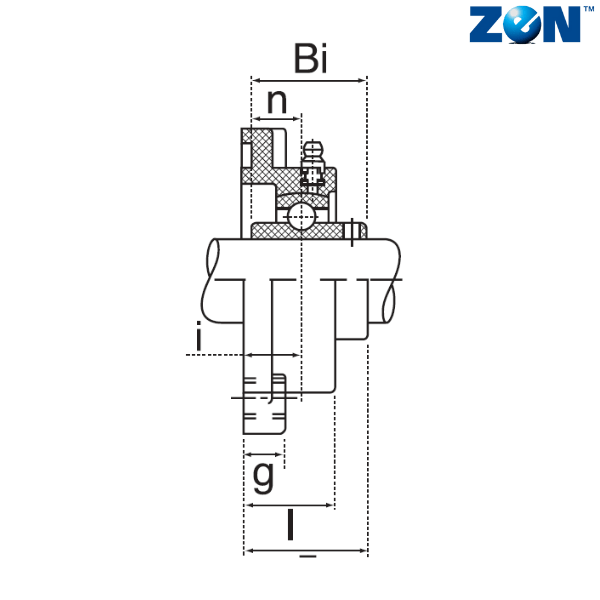

g (mm) - 14.3
l (mm) - 31.5
s (mm) - 11
z (mm) - 41.2
i (mm) - 19.2
Bi (mm) - 38.1
n (mm) - 15.9
Weight (kg) - 0.18
Bearing - SUC206
** Images are for representation purposes only
