Description
Brand - ZEN
Item Number - TF205 ZEN

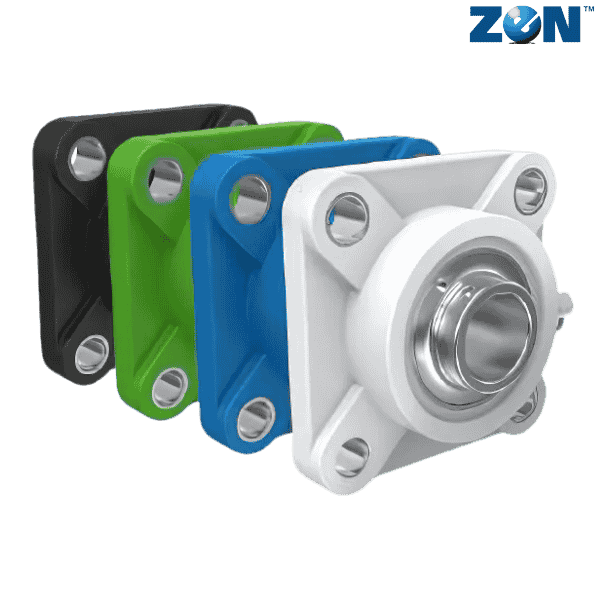

Category - Thermoplastic Pillow Blocks (TF)

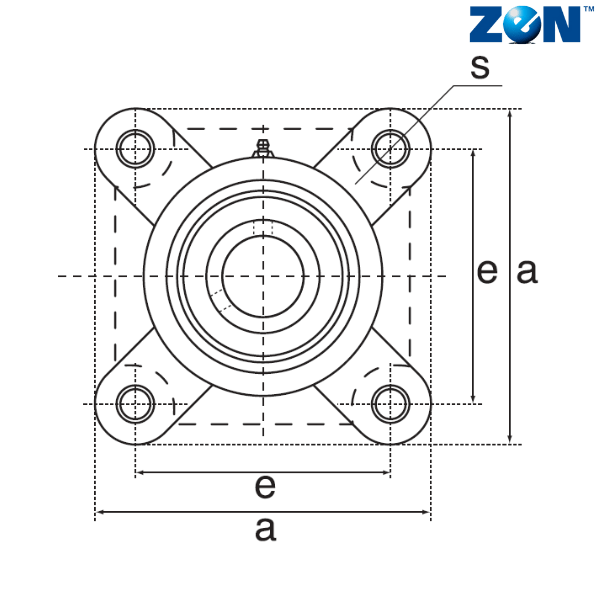

Overall Length (a) mm - 95
Bolt Center to Center Length (e) mm - 70

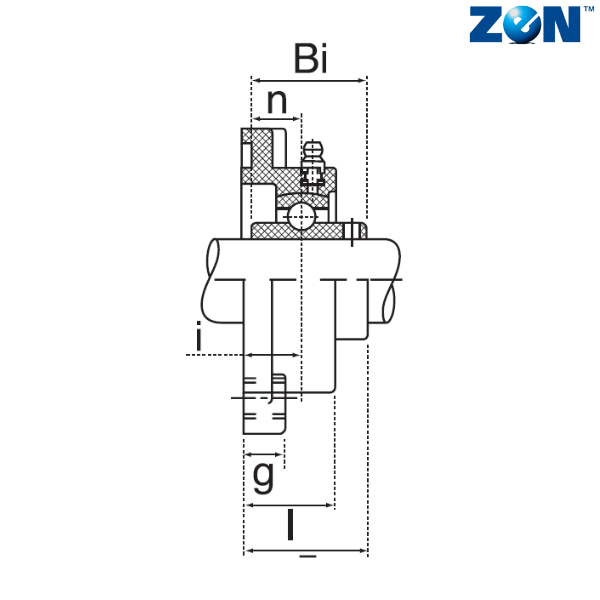

g (mm) - 14
l (mm) - 28
s (mm) - 11
z (mm) - 36.7
i (mm) - 17
Bi (mm) - 34
n (mm) - 14.3
Weight (kg) - 0.15
Bearing - SUC205
** Images are for representation purposes only
