Description
Brand - ZEN
Item Number - TF203 ZEN

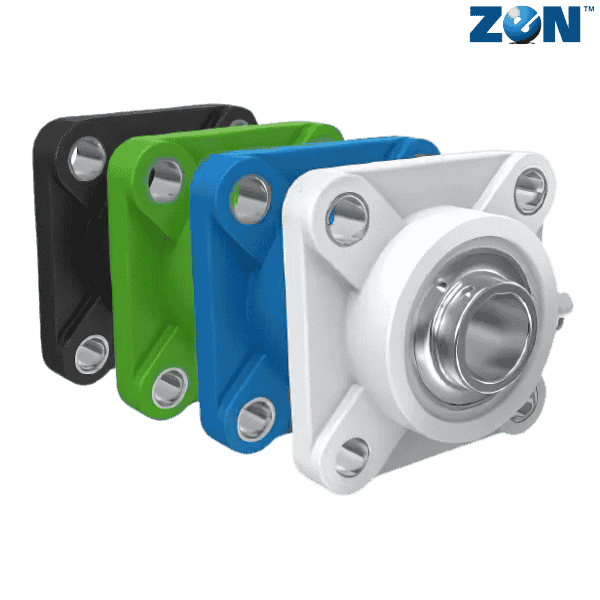

Category - Thermoplastic Pillow Blocks (TF)

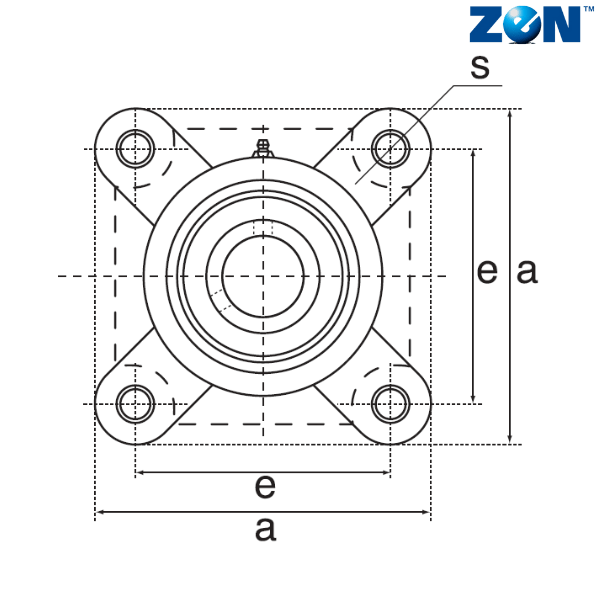

Overall Length (a) mm - 86
Bolt Center to Center Length (e) mm - 63.5

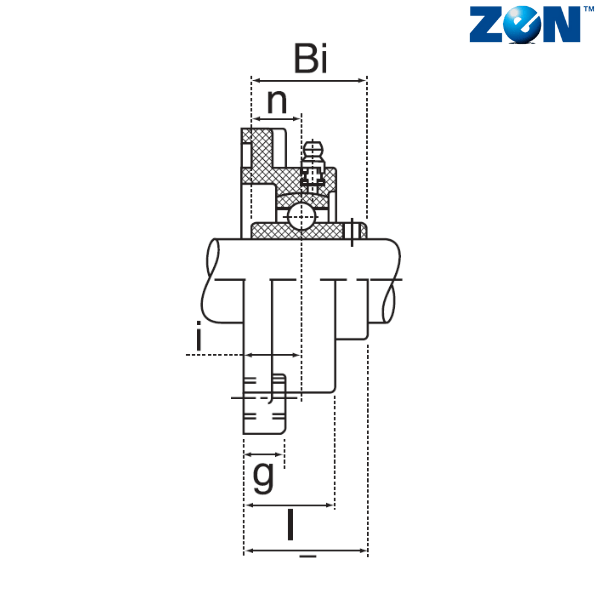

g (mm) - 13.4
l (mm) - 27.8
s (mm) - 11
z (mm) - 34.6
i (mm) - 18
Bi (mm) - 31
n (mm) - 12.7
Weight (kg) - 0.12
Bearing - SUC203
** Images are for representation purposes only
