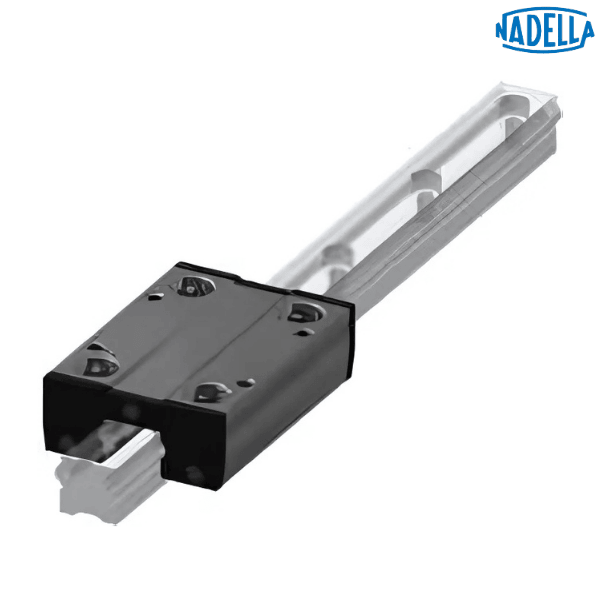

TB4 GLA 19.06 NADELLA

Brand - NADELLA
Item Number - TB4 GLA 19.06 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers

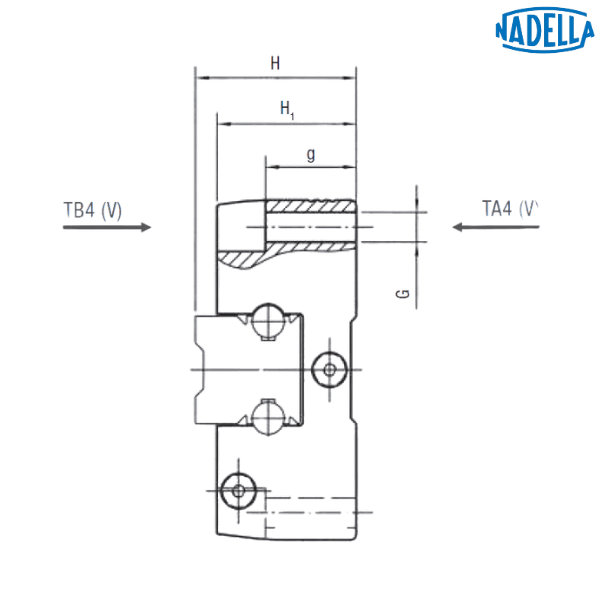

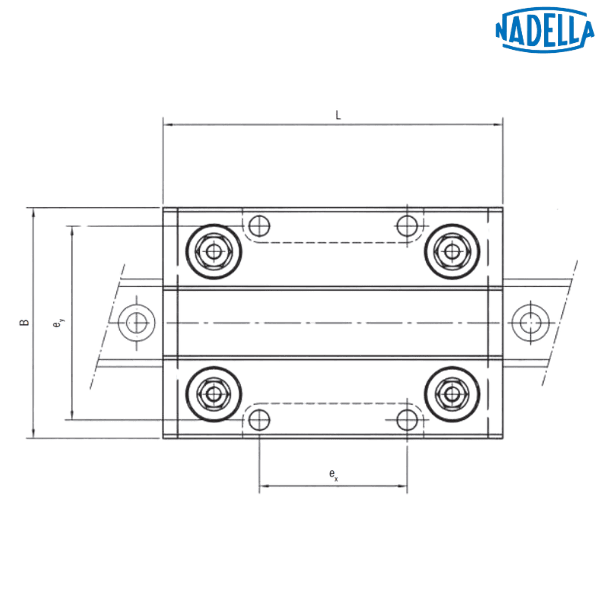

Principal Dimensions & Load Ratings (Metric):
Dimension (B) - 70 mm
Dimension (G) - M8
Dimension (H) - 36 mm
Dimension (H1) - 31 mm
Dimension (L) - 104 mm
Dimension (ex) - 45 mm
Dimension (ey) - 57 mm
Dimension (g) - 23.5 mm
Weight - 0.35 kg
Dimension (V) - M6
Suggested Combinations - FWN 25

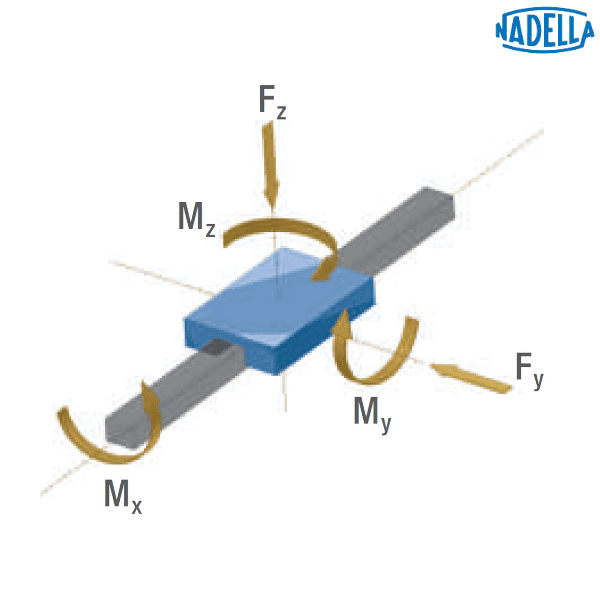

Maximum Load (Fy) - 1700 N
Maximum Load (Fz) - 960 N
Maximum Load (Mx) - 19 Nm
Maximum Load (My) - 33 Nm
Maximum Load (Mz) - 70 Nm

Description of Prefixes:
TB4 - Carriages with anodised aluminium body with four guide rollers type GLA for FWN rails of Flexi-Line system
GLA - Guide roller with double row of balls with oblique contact, with “gothic arch” profile for U-Line system

Other salient points to be noted:
• Dimensions according to DIN 645
• Longer carriages on request

Optional Features:
• Available with felts for lubrication, non lubricated (UU)
• On request the felts can be supplied lubricated

♦ ♦ Images are for representation purposes only
