TB4 GLA 17.06 NADELLA

Brand - NADELLA
Item Number - TB4 GLA 17.06 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers

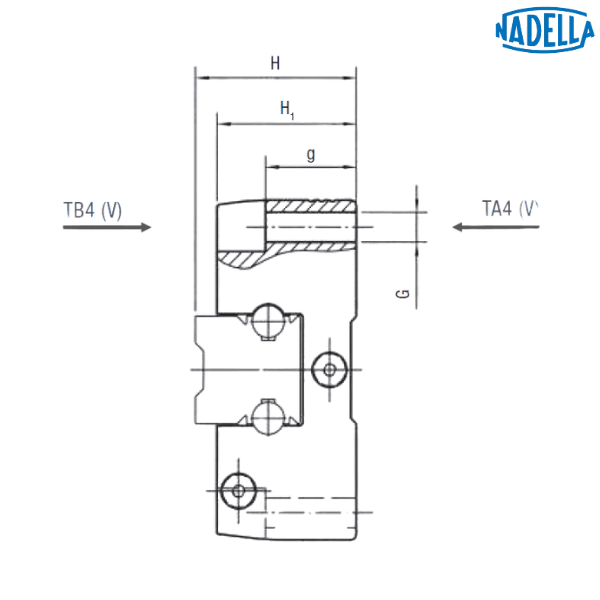

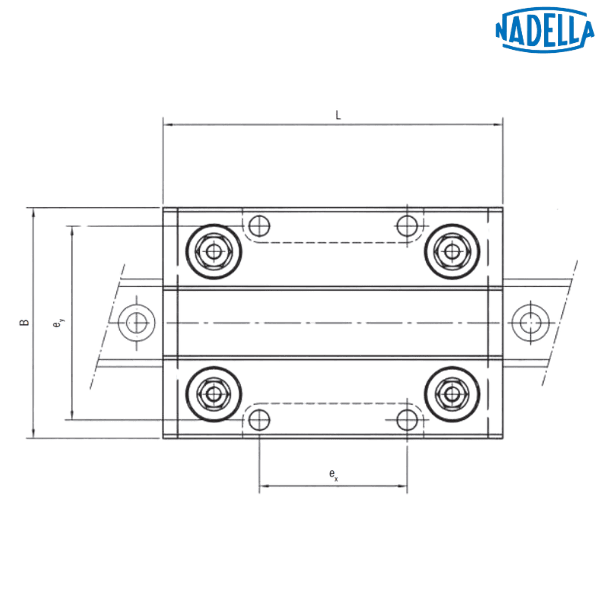

Principal Dimensions & Load Ratings (Metric):
Dimension (B) - 63 mm
Dimension (G) - M6
Dimension (H) - 30 mm
Dimension (H1) - 26 mm
Dimension (L) - 92 mm
Dimension (ex) - 40 mm
Dimension (ey) - 53 mm
Dimension (g) - 17 mm
Weight - 0.25 kg
Dimension (V) - M5
Suggested Combinations - FWN 20

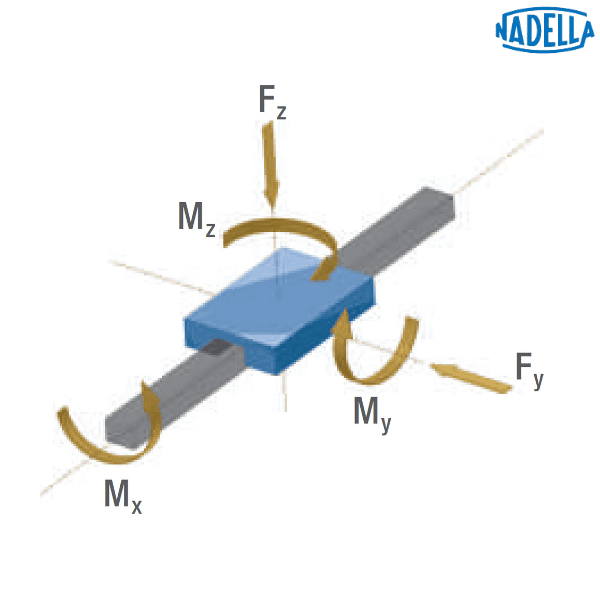

Maximum Load (Fy) - 600 N
Maximum Load (Fz) - 400 N
Maximum Load (Mx) - 5 Nm
Maximum Load (My) - 15 Nm
Maximum Load (Mz) - 20 Nm

Description of Prefixes:

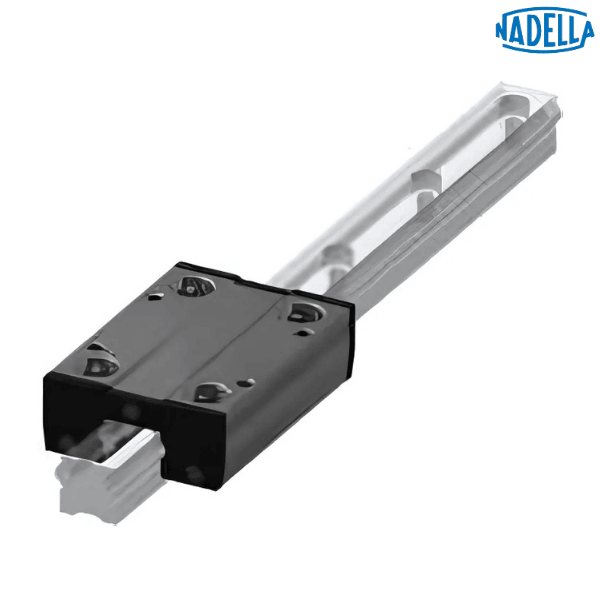

TB4 - Carriages with anodised aluminium body with four guide rollers type GLA for FWN rails of Flexi-Line system
GLA - Guide roller with double row of balls with oblique contact, with “gothic arch” profile for U-Line system

Other salient points to be noted:
• Dimensions according to DIN 645
• Longer carriages on request

Optional Features:
• Available with felts for lubrication, non lubricated (UU)
• On request the felts can be supplied lubricated
