Description
Brand - Link-Belt

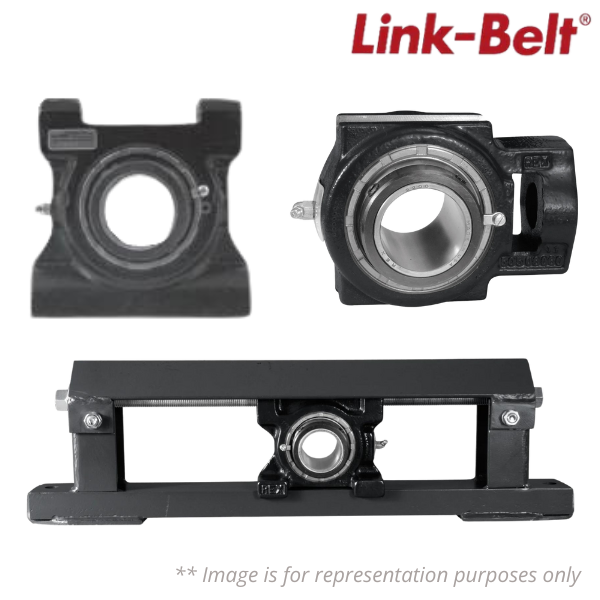

Item Number - TB22435H Link-Belt
Category - Take-up Blocks Spherical Roller Bearings
UPC - 662327141868
Material - 10426283
Model - TB22400
Bore Size (in) - 2.1875 in
Clearance - C0 STANDARD
Fixed vs. Expansion - Fixed
Housing Construction - Solid
Housing Material - Cast Iron
Housing Style - Take-Up Block
Housing Type - Take Up, Wide Slot
Locking Type - Single Set Collar
Retainer Material - Steel
Seal Type - Labyrinth Seal
Adjusting Screw Clearance Hole Diameter (in) - 1.375 in
Adjusting Screw Square Nut Seat Height (in) - 2 1/4 in
Adjustment Pad Height (in) - 3 3/4 in
Adjustment Slot Width (in) - 1 1/4 in
Available End Cap - B436DTC
Available Seal Type - E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Base to Centerline Height (in) - 4 5/8 in
Bearing Brand - LINK-BELT ROLLER SOLID HOUSED
Bolt Size (in) - 2.1875 in
Bore Length (in) - 3 5/16 in
Distance from Bearing Centerline to Outer Most Bearing Face (in) - 2 1/16 in
Distance from Housing Outside Diameter to Cast Square Nut Slot Face (in) - 5 in
Grease Fitting Thread Size - 1/8 NPT
Height - 5.5
Housing Coating - POWDER COATED
Housing Height (in) - 5 1/4 in
Housing Length (in) - 7 1/8 in
Housing Width (in) - 2 1/2 in
Insert - B435L
Length - 9.56
Locking Collar Outside Diameter (in) - 3 1/4 in
Locking Device Kit - B436SC
Lubrication Type - EXXON RONEX MP STD
Maximum Speed (RPM) - 2500 rpm
Maximum Temperature (C) - 107 C
Maximum Temperature (F) - 225 F
Microlock Kit - B436MLK
Net Weight (Kg) - 6.65873056
Primary Seal - STEEL CLEARANCE SEAL
Radial Dynamic Load Capacity (lb) - 32500 lb
Radial Static Load Capacity (lb) - 44400 lb
Seal Kit - B436HS
Setscrew Torque (in-lbs) - 460 in/lbs
Size Code - B436
Slot Length (in) - 0.813 in
Slot Spacing (in) - 4.5 in
Take-up Slot Length (in) - 3 3/4 in
Unit of Dimension - IN
Vibration Frequency Fundamental Train - 0.0072 cps
Vibration Frequency Inner Ring Defect - 0.1790 cps
Vibration Frequency Outer Ring Defect - 0.1377 cps
Vibration Frequency Roller Spin - 0.0606 cps
Volume - 0.911
Volume Unit - GLL
Width - 4
