Description
Brand - IKO
Item Number - TAF 405030/SG IKO
Also Known As - TAF405030/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 40
Boundary Dimension (Fw) mm - 40
Outer Diameter (D) mm - 50
Boundary Dimension (C) mm - 30
Minimum Standard Mounting Dimension (rs) mm - 0.3

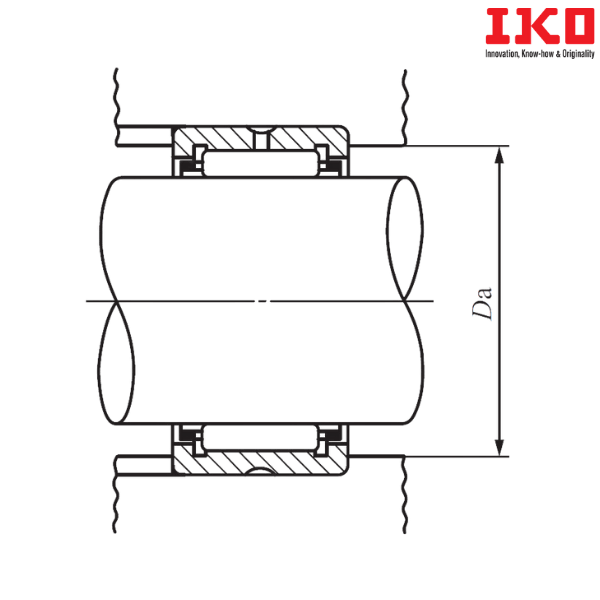

Maximum Standard Mounting Dimension (Da) mm - 48
Basic Dynamic Load Rating (C) N - 42300
Basic Static Load Rating (C0) N - 86200
Weight (kg) - 0.13
** Images are for representation purposes only
