Description
Brand - IKO
Item Number - TAF 293820/SG IKO
Also Known As - TAF293820/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 29
Boundary Dimension (Fw) mm - 29
Outer Diameter (D) mm - 38
Boundary Dimension (C) mm - 20
Minimum Standard Mounting Dimension (rs) mm - 0.3

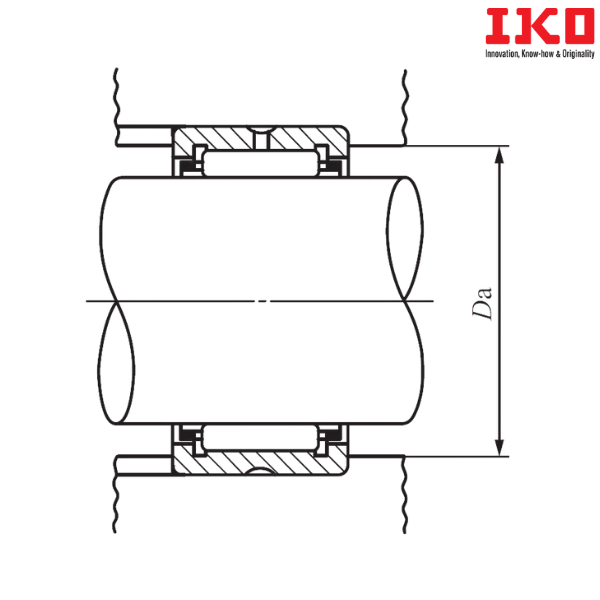

Maximum Standard Mounting Dimension (Da) mm - 36
Basic Dynamic Load Rating (C) N - 21600
Basic Static Load Rating (C0) N - 37200
Weight (kg) - 0.059
** Images are for representation purposes only
