Description
Brand - IKO
Item Number - TAF 253320/SG IKO
Also Known As - TAF253320/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 25
Boundary Dimension (Fw) mm - 25
Outer Diameter (D) mm - 33
Boundary Dimension (C) mm - 20
Minimum Standard Mounting Dimension (rs) mm - 0.3

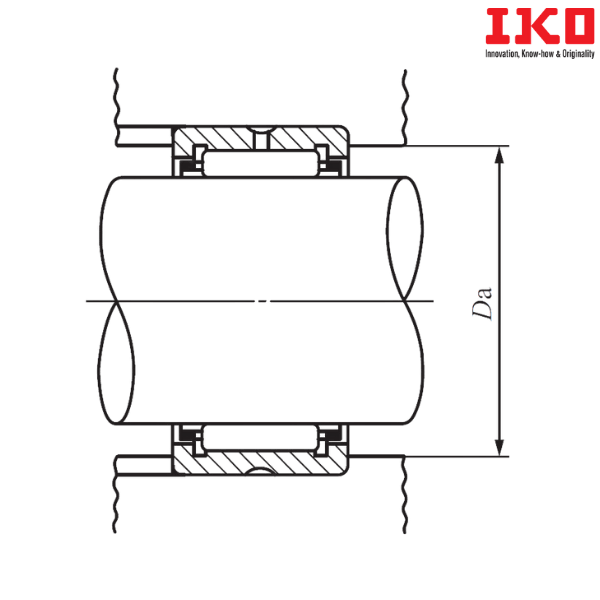

Maximum Standard Mounting Dimension (Da) mm - 31
Basic Dynamic Load Rating (C) N - 20000
Basic Static Load Rating (C0) N - 32100
Weight (kg) - 0.0435
** Images are for representation purposes only
