Description
Brand - IKO
Item Number - TAF 243216/SG IKO
Also Known As - TAF243216/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 24
Boundary Dimension (Fw) mm - 24
Outer Diameter (D) mm - 32
Boundary Dimension (C) mm - 16
Minimum Standard Mounting Dimension (rs) mm - 0.3

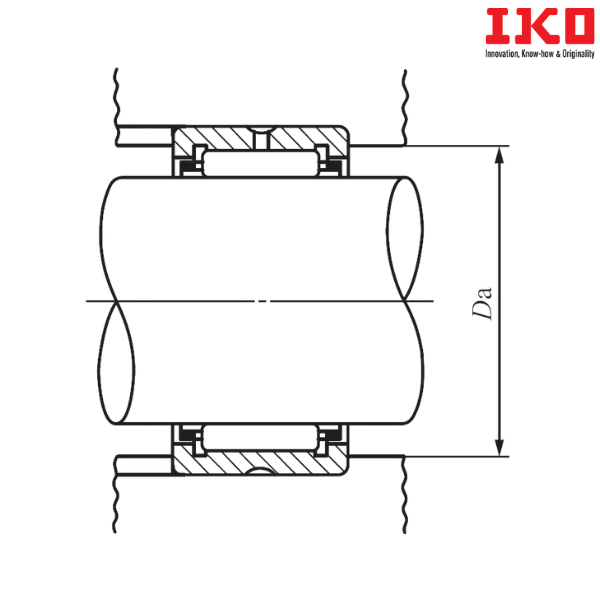

Maximum Standard Mounting Dimension (Da) mm - 30
Basic Dynamic Load Rating (C) N - 15300
Basic Static Load Rating (C0) N - 22500
Weight (kg) - 0.033
** Images are for representation purposes only
