Description
Brand - IKO
Item Number - TAF 223020/SG IKO
Also Known As - TAF223020/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 22
Boundary Dimension (Fw) mm - 22
Outer Diameter (D) mm - 30
Boundary Dimension (C) mm - 20
Minimum Standard Mounting Dimension (rs) mm - 0.3

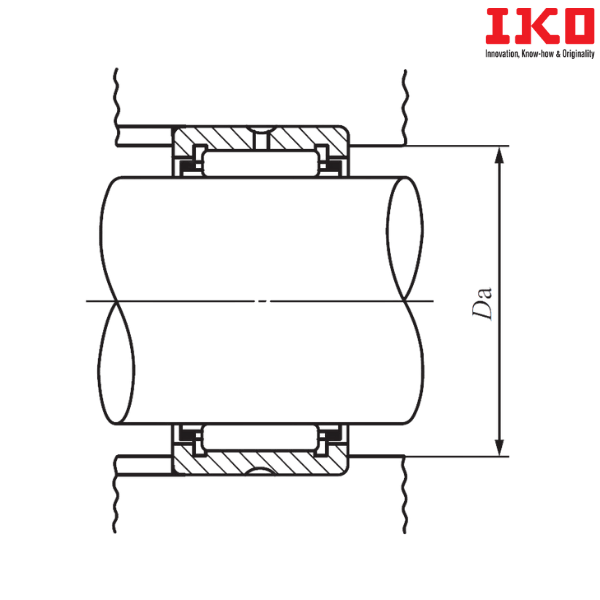

Maximum Standard Mounting Dimension (Da) mm - 28
Basic Dynamic Load Rating (C) N - 18900
Basic Static Load Rating (C0) N - 28700
Weight (kg) - 0.039
** Images are for representation purposes only
