Description
Brand - IKO
Item Number - TAF 182616/SG IKO
Also Known As - TAF182616/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 18
Boundary Dimension (Fw) mm - 18
Outer Diameter (D) mm - 26
Boundary Dimension (C) mm - 16
Minimum Standard Mounting Dimension (rs) mm - 0.3

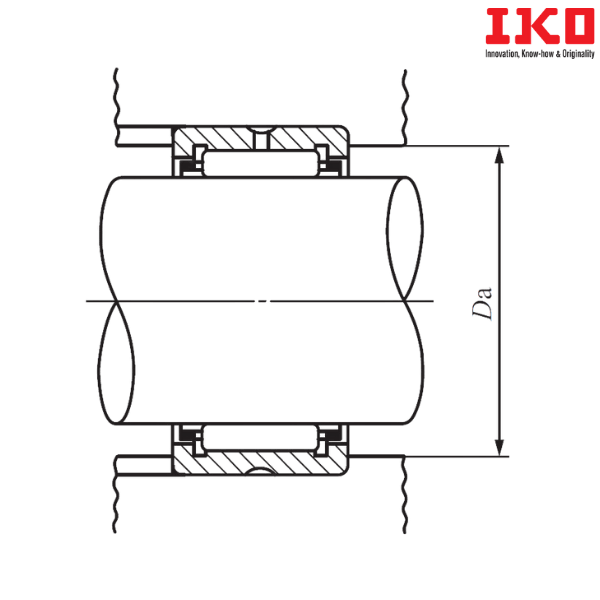

Maximum Standard Mounting Dimension (Da) mm - 24
Basic Dynamic Load Rating (C) N - 13400
Basic Static Load Rating (C0) N - 17500
Weight (kg) - 0.0265
** Images are for representation purposes only
