Description
Brand - IKO
Item Number - TAF 162420/SG IKO
Also Known As - TAF162420/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 16
Boundary Dimension (Fw) mm - 16
Outer Diameter (D) mm - 24
Boundary Dimension (C) mm - 20
Minimum Standard Mounting Dimension (rs) mm - 0.3
Maximum Standard Mounting Dimension (Da) mm - 22
Basic Dynamic Load Rating (C) N - 15500
Basic Static Load Rating (C0) N - 20400
Weight (kg) - 0.03

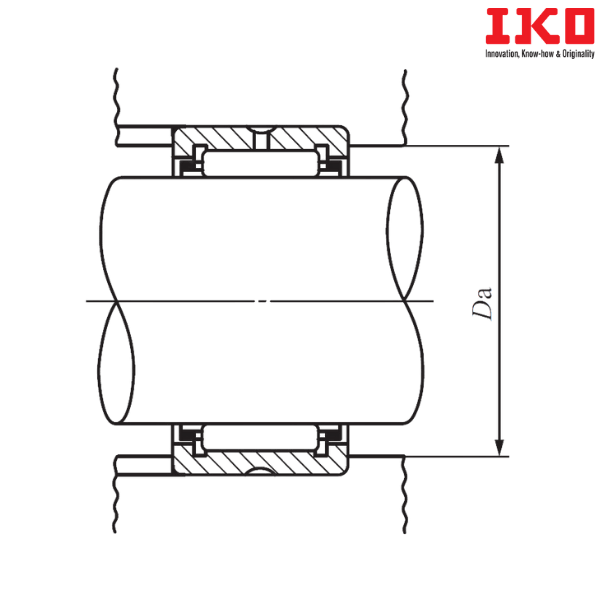

** Images are for representation purposes only
