Description
Brand - IKO
Item Number - TAF 142216/SG IKO
Also Known As - TAF142216/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 14
Boundary Dimension (Fw) mm - 14
Outer Diameter (D) mm - 22
Boundary Dimension (C) mm - 16
Minimum Standard Mounting Dimension (rs) mm - 0.3

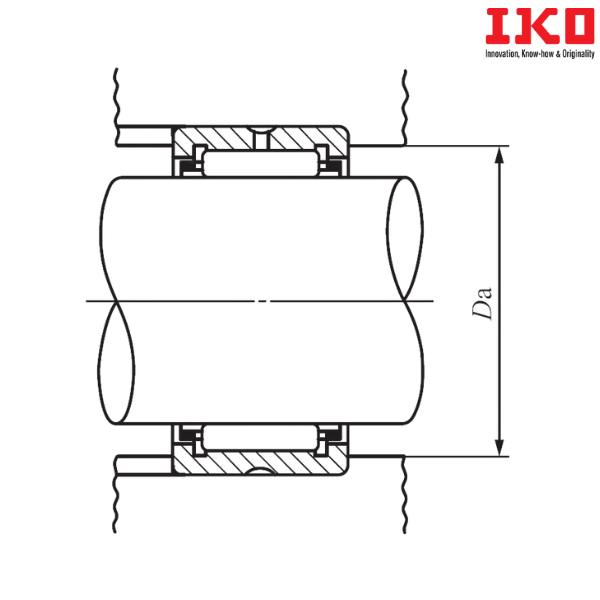

Maximum Standard Mounting Dimension (Da) mm - 20
Basic Dynamic Load Rating (C) N - 11700
Basic Static Load Rating (C0) N - 13700
Weight (kg) - 0.022
** Images are for representation purposes only
