Description
Brand - IKO
Item Number - TAF 121912/SG IKO
Also Known As - TAF121912/SG
Category - C-Lube Machined Type Needle Roller Bearing without Inner Ring
Shaft Diameter (mm) - 12
Boundary Dimension (Fw) mm - 12
Outer Diameter (D) mm - 19
Boundary Dimension (C) mm - 12
Minimum Standard Mounting Dimension (rs) mm - 0.3
Maximum Standard Mounting Dimension (Da) mm - 17
Basic Dynamic Load Rating (C) N - 6610
Basic Static Load Rating (C0) N - 7260
Weight (kg) - 0.0125

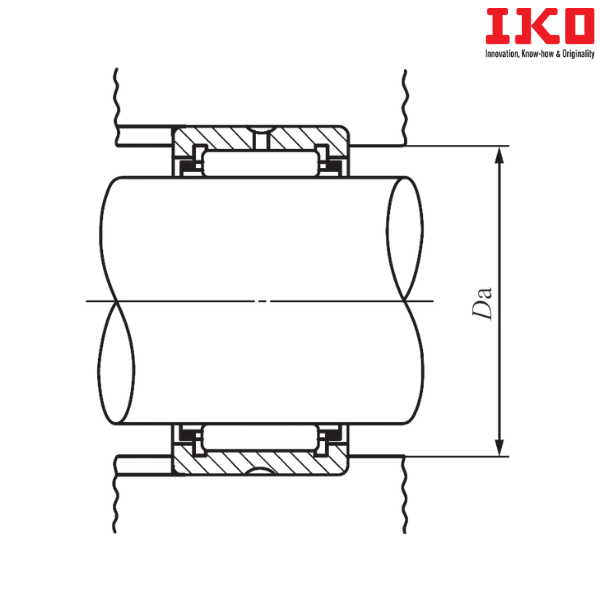

** Images are for representation purposes only
