Description
Brand - TIMKEN
Item Number - T94W TIMKEN
Category - Tapered Roller Thrust Bearing (TTSP Type)

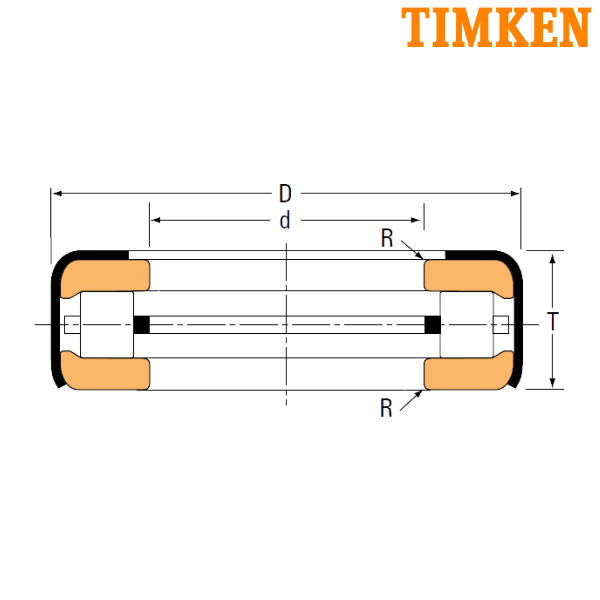

Bore Diameter (d) mm - 24.054
Bore Diameter (d) inch - 0.9470
Outer Diameter (D) mm - 48.021
Outer Diameter (D) inch - 1.8906
Width (T) mm - 15.088
Width (T) inch - 0.5940
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 17350
Steering Pivot Rating (lbf) - 3900
Weight (kg) - 0.11
Weight (lbs) - 0.24
Oil Holes In Retainer - YES
No Oil Holes In Retainer (Part Number) - T94
TTSP - Light-Duty, with Cage Tapered Roller Thrust Bearing

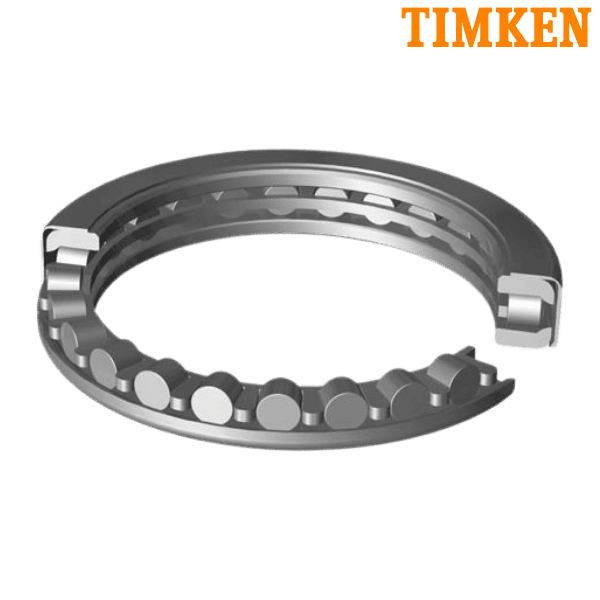

** Images are for representation purposes only
