| Inner Diameter | 23.825 mm |
| Outer Diameter | 44.958 mm |
| Height | 13.487 mm |
| Basic Static Load Rating, Axial | 11950.0 N |
| Chamfer Diameter | 1.6 mm |
Description

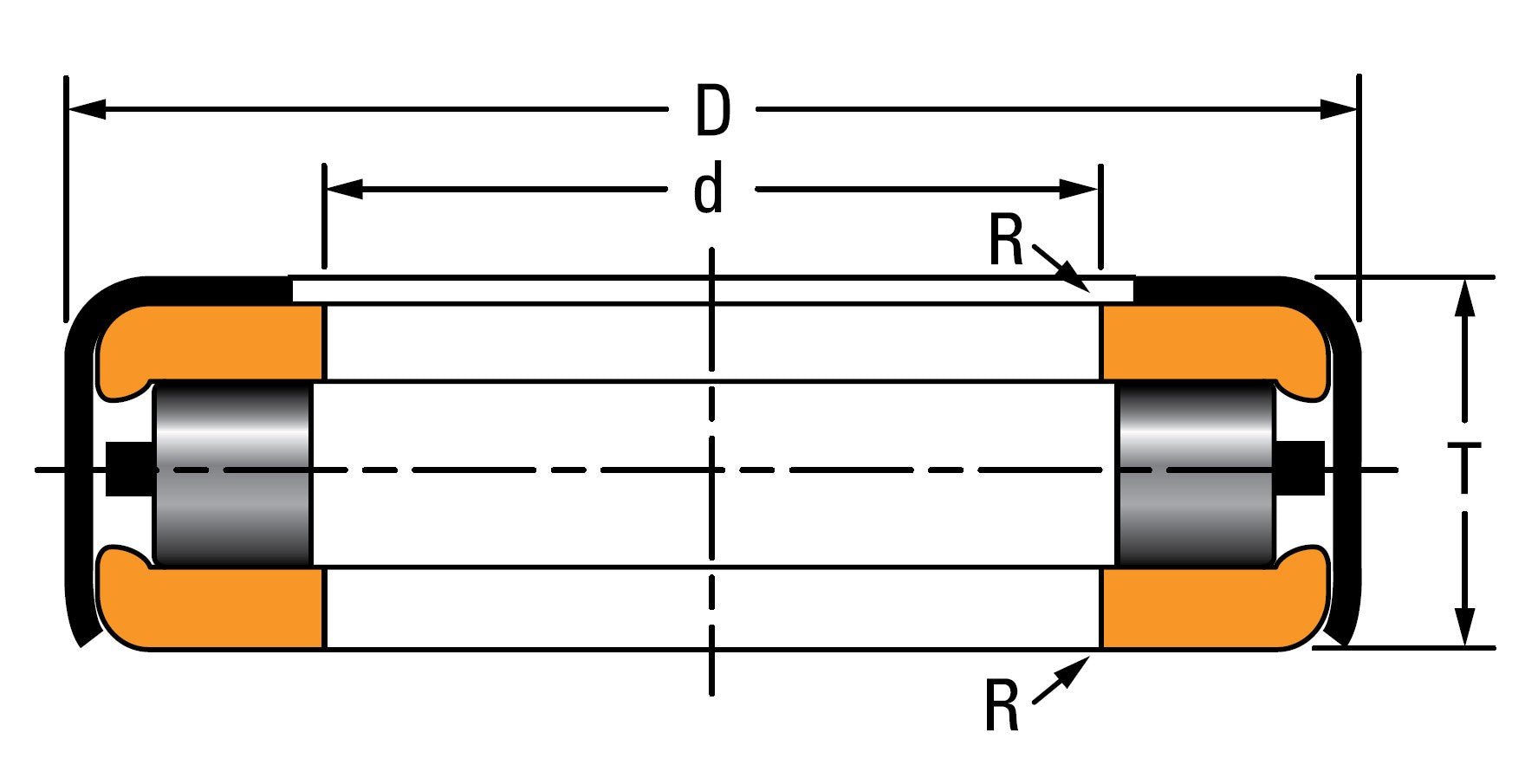

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:

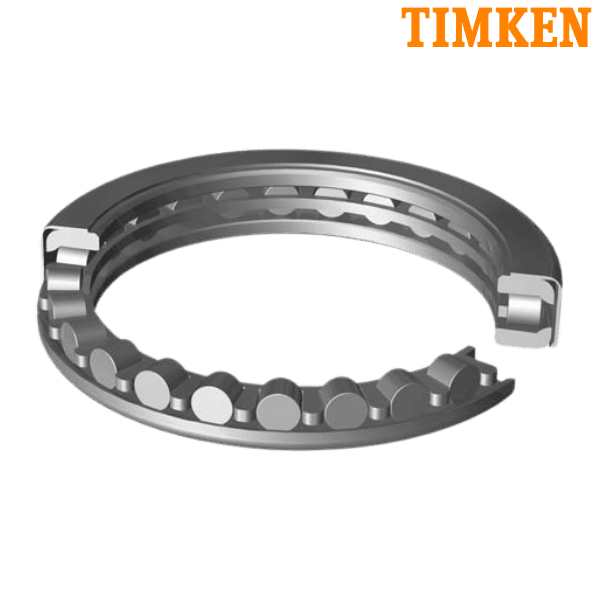

The Timken TTSPS is a durable, light-duty thrust bearing built to handle the demands of automotive and industrial steering pivot applications. Featuring an off-apex roller arrangement, this unit comes pre-assembled. An outside stamped steel retainer holds the races, rollers, and cage together, simplifying the installation process and protecting the unit during shipping.
-
Application: Ideal for light-duty automotive and industrial steering pivot positions.
-
Component Structure: Comprised of two thrust tapered races, precision rollers, a specialized cage, and a robust outside retainer.
-
Design Profile: Features an off-apex roller arrangement for optimal load distribution.
-
Cage Construction: Equipped with a finger-type cage riding on large roller ends.
-
Installation Ready: The stamped steel assembly retainer keeps all components securely together during transit and mounting.
* T92 has two bores, other bore = 24.054 mm (0.9470 in.)
** Images are for representation purposes only
