| Inner Diameter | 228.6 mm |
| Outer Diameter | 482.6 mm |
| Height | 104.775 mm |
| Bearing Weight | 98.3 kg |
| Basic Dynamic Load Rating, Axial | 1140000.0 N |
| Basic Static Load Rating, Axial | 15200000.0 N |
| Maximum Shaft Chamfer Diameter | 3.0 mm |
| Maximum Housing Chamfer Diameter | 22.4 mm |
Description

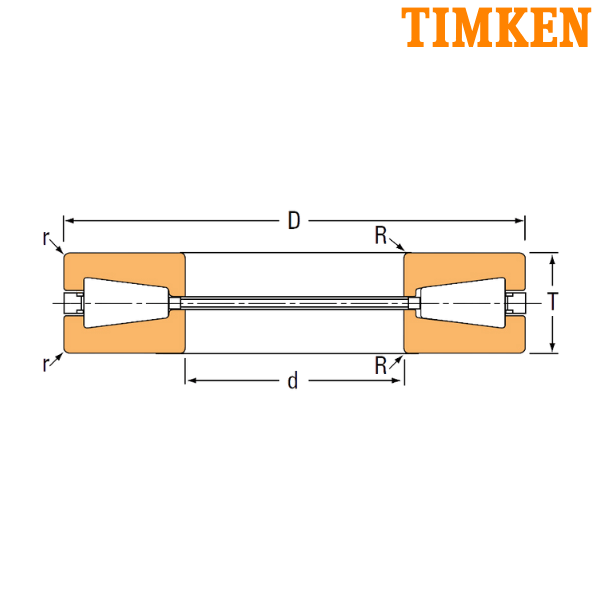

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Maximum Shaft Chamfer Diameter
r – Maximum Housing Chamfer Diameter
Other salient points to be noted:
The TTHD nomenclature designates Timken’s premium line of Heavy Duty Thrust Tapered Roller Bearing engineered to manage extreme axial loads, this specific design features a caged roller design with precision I.D. (Inner Diameter) corner reliefs. These reliefs provide essential clearance during mounting, ensuring the bearing seats properly against shaft shoulders that have larger fillets or specific machining requirements.
Salient Features:
-
Design Type: Caged design equipped with Inner Diameter (I.D.) corner reliefs for enhanced mounting clearance.
-
Core Components: Features two thrust tapered races, rollers, and a cage.
-
Performance: Heavy-duty, high-speed capable, and specifically tailored to fit complex shaft geometries.

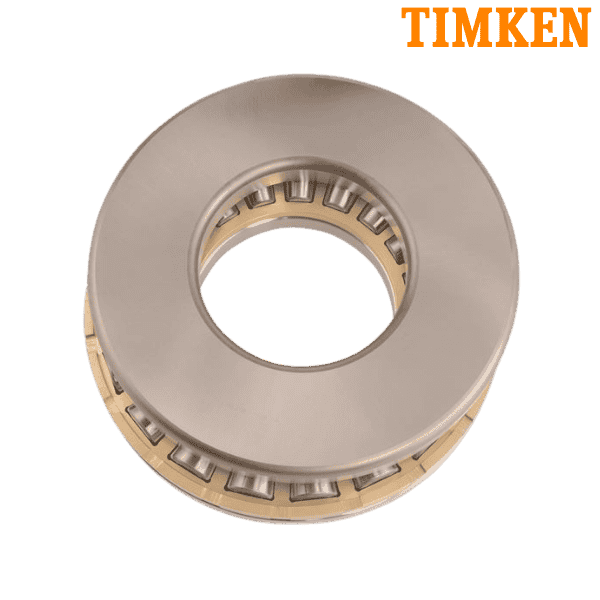

** Images are for representation purposes only
