| Outer Diameter | 492.811 mm |
| Height | 145.288 mm |
| Feature Diameter | 431.8 mm |
| Basic Static Load Rating, Axial | 20640000.0 N |
| Outer Diameter Of Shaft Washer | 495.249 mm |
| Spherical Radius | 1066.8 mm |
| Maximum Housing Chamfer Diameter | 6.0 mm |
Description

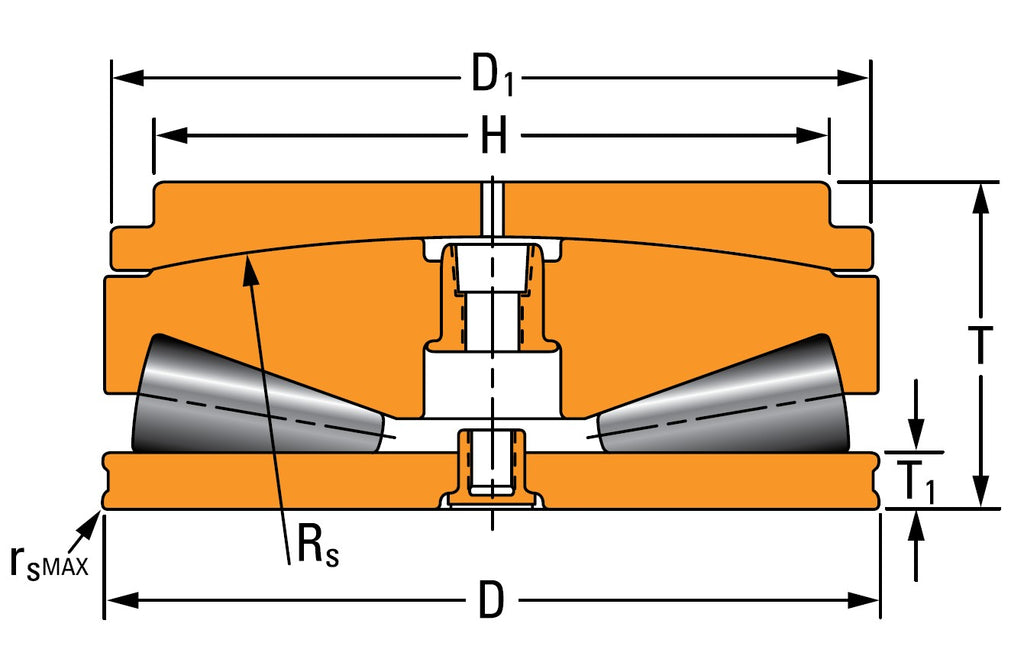

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:
The Timken TTHDFLSX-3 is an advanced three-ring thrust tapered roller bearing designed specifically for heavy-duty rolling mill screw-down systems. It incorporates a top aligning plate to accommodate specific mounting and alignment requirements in rigorous metalworking environments.
-
Industry Specific: Engineered for metals industry rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design for maximum thrust load endurance.
-
Three-Ring Construction: Features a specialized three-ring design for complex assemblies.
-
Top Aligning Plate: Includes one top aligning plate for improved load distribution and alignment.
-
Race Profiles: Features one lower flat race and one upper tapered race with a special convex profile.
