Description
Brand - TIMKEN
Item Number - T88W TIMKEN
Category - Tapered Roller Thrust Bearing (TTSP Type)

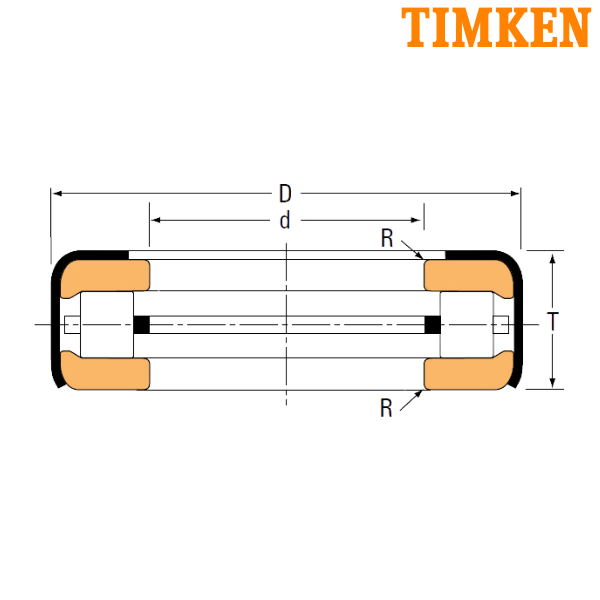

Bore Diameter (d) mm - 22.479
Bore Diameter (d) inch - 0.8850
Outer Diameter (D) mm - 48.021
Outer Diameter (D) inch - 1.8906
Width (T) mm - 15.088
Width (T) inch - 0.5940
Maximum Shaft Fillet Radius (R) mm - 0.8
Maximum Shaft Fillet Radius (R) inch - 0.03
Steering Pivot Rating (N) - 17300
Steering Pivot Rating (lbf) - 3890
Weight (kg) - 0.11
Weight (lbs) - 0.24
Oil Holes In Retainer - YES
No Oil Holes In Retainer (Part Number) - T88
TTSP - Light-Duty, with Cage Tapered Roller Thrust Bearing

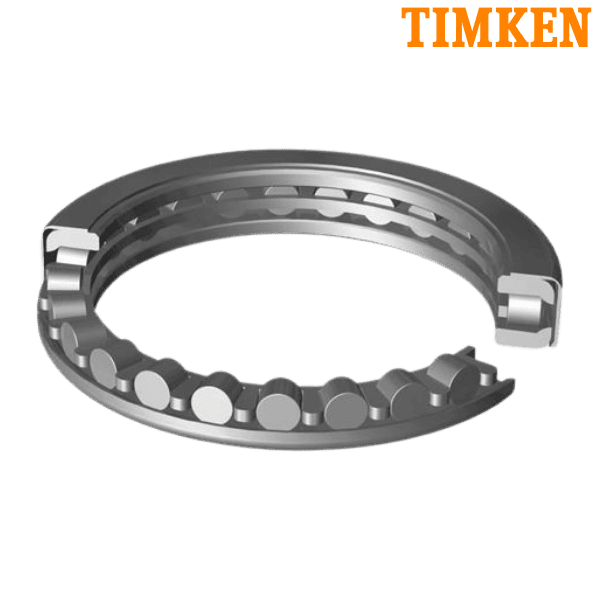

** Images are for representation purposes only
