Description
Brand - TIMKEN
Item Number - T86 TIMKEN

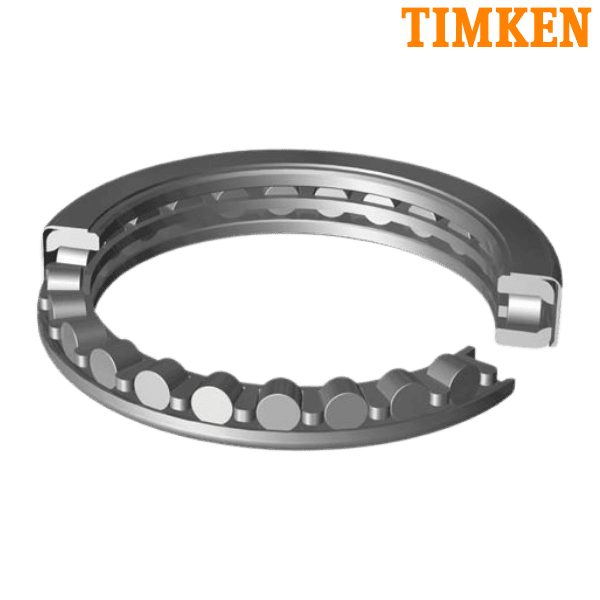

Category - Tapered Roller Thrust Bearing (TTSP Type)

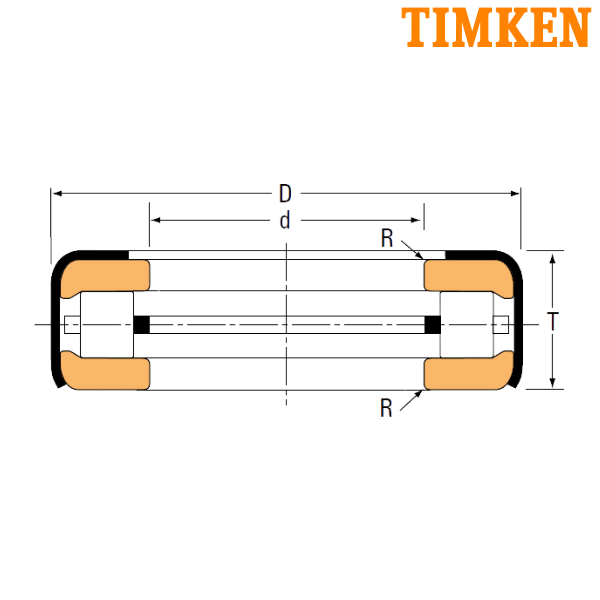

Bore Diameter (d) mm - 20.257
Bore Diameter (d) inch - 0.7975
Outer Diameter (D) mm - 39.688
Outer Diameter (D) inch - 1.5625
Width (T) mm - 14.288
Width (T) inch - 0.5625
Maximum Shaft Fillet Radius (R) mm - 1.3
Maximum Shaft Fillet Radius (R) inch - 0.05
Steering Pivot Rating (N) - 10700
Steering Pivot Rating (lbf) - 2400
Weight (kg) - 0.07
Weight (lbs) - 0.15
Oil Holes In Retainer - NO
TTSP - Light-Duty, with Cage Tapered Roller Thrust Bearing
** Images are for representation purposes only
