Description
Brand - TIMKEN
Item Number - T811 TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

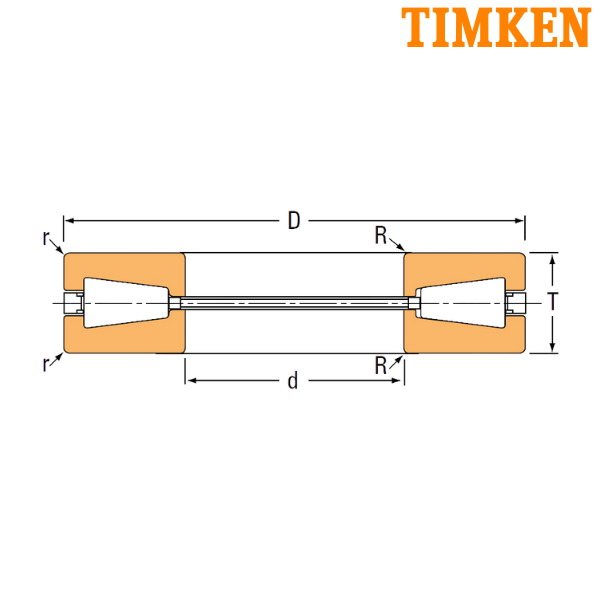

Bore Diameter (d) mm - 203.200
Bore Diameter (d) inch - 8.0000
Outer Diameter (D) mm - 419.100
Outer Diameter (D) inch - 16.5000
Width (T) mm - 92.075
Width (T) inch - 3.6250
Maximum Shaft Fillet Radius (R) mm - 9.7
Maximum Shaft Fillet Radius (R) inch - 0.38
Maximum Housing Fillet Radius (r) mm - 9.7
Maximum Housing Fillet Radius (r) inch - 0.38
Static Load Rating (C0) N - 11400000
Static Load Rating (C0) lbf - 2560000
Dynamic Load Rating (Ca90) N - 869000
Dynamic Load Rating (Ca90) lbf - 195000
Weight (kg) - 65.48
Weight (lbs) - 144.33

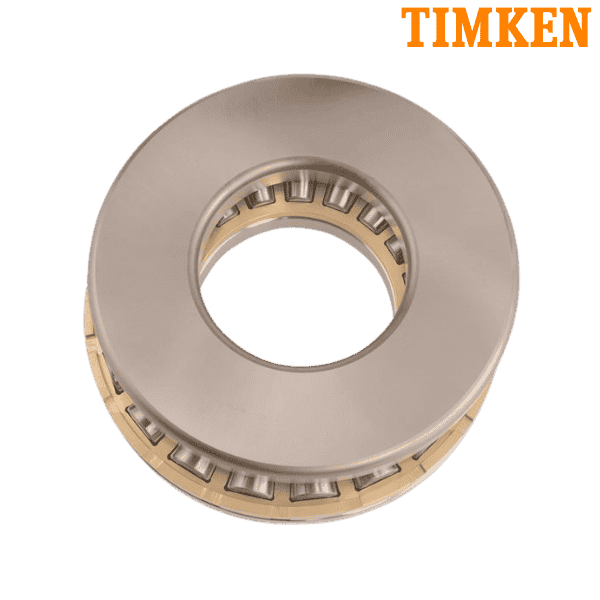

TTHD - Heavy Duty Tapered Roller Thrust Bearing
** Images are for representation purposes only
