| Inner Diameter | 19.304 mm |
| Outer Diameter | 41.275 mm |
| Height | 13.487 mm |
| Bearing Weight | 0.1 kg |
| Basic Static Load Rating, Axial | 11100.0 N |
| Chamfer Diameter | 1.6 mm |
Description

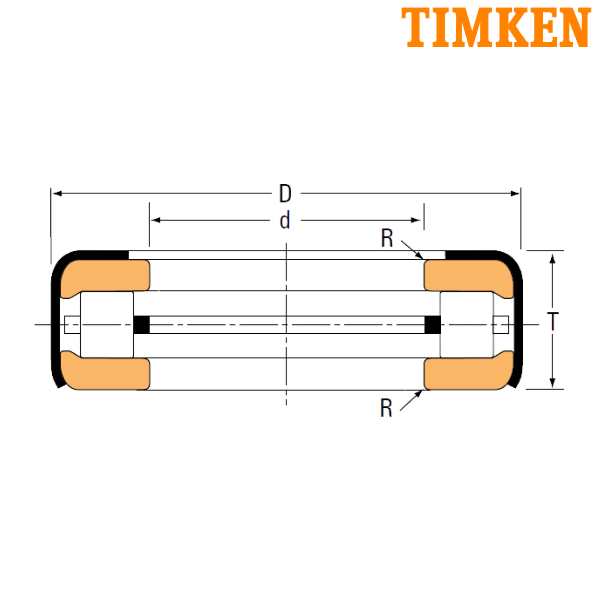

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:

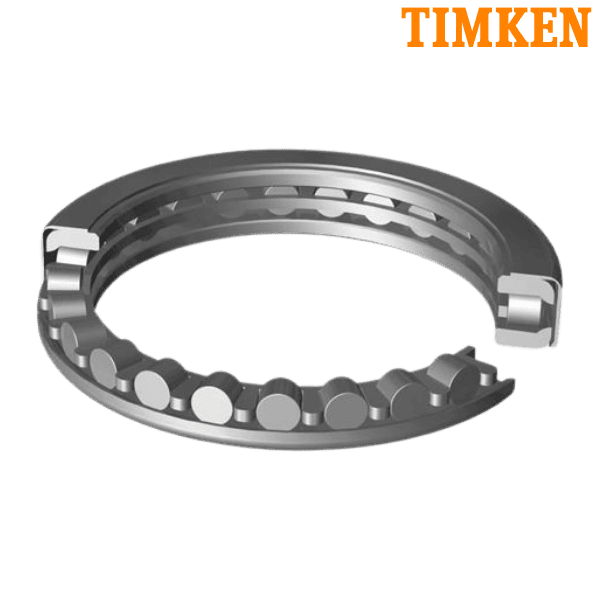

The Timken TTSP is a highly reliable, light-duty thrust bearing designed specifically for steering pivot positions in automotive and industrial machinery. Engineered with an off-apex roller arrangement, this bearing is delivered as a unified assembly-held securely by an outside stamped steel retainer to ensure safe shipping and effortless installation.
-
Application: Extensively used in light-duty automotive and industrial steering pivot positions.
-
Component Structure: Comprised of two thrust tapered races, precision rollers, a specialized cage, and a robust outside retainer.
-
Design Profile: Features an off-apex roller arrangement for optimal load distribution.
-
Cage Construction: Equipped with a finger-type cage riding on small roller ends.
-
Installation Ready: The stamped steel assembly retainer keeps all components securely together during transit and mounting.
** Images are for representation purposes only
