| Inner Diameter | 177.8 mm |
| Outer Diameter | 431.8 mm |
| Height | 101.6 mm |
| Bearing Weight | 86.3 kg |
| Basic Dynamic Load Rating, Axial | 1030000.0 N |
| Basic Static Load Rating, Axial | 13600000.0 N |
| Maximum Shaft Chamfer Diameter | 12.8 mm |
| Maximum Housing Chamfer Diameter | 12.8 mm |
Description
Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Maximum Shaft Chamfer Diameter
r – Maximum Housing Chamfer Diameter
Other salient points to be noted:

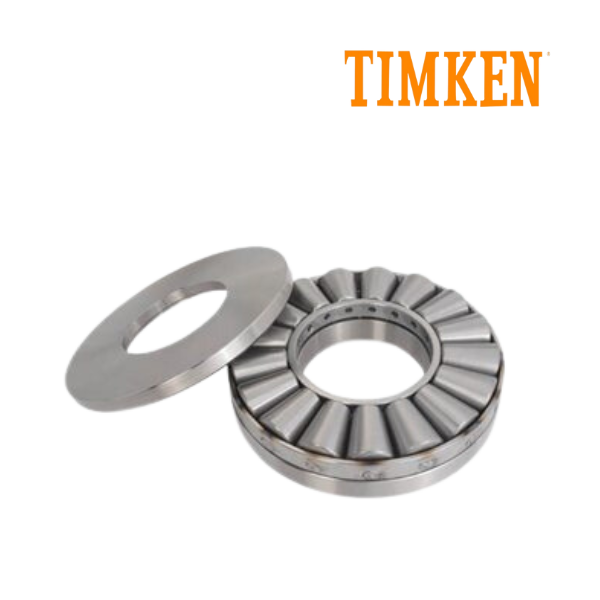

The TTHD nomenclature designates Timken’s premium line of Heavy Duty Thrust Tapered Roller Bearing engineered to manage extreme axial loads, this specific design features a caged roller setup with a specialized race design: it is manufactured without roller smaller-end ribs. This specialized configuration accommodates specific lubrication flows or mating component designs while delivering standard TTHD ruggedness.
Salient Features:
-
Design Type: Caged configuration featuring races with no roller smaller-end ribs.
-
Core Components: Includes two thrust tapered races, precision rollers, and a guiding cage.
-
Performance: Operates reliably at relatively high speeds while offering a specialized internal geometry for unique application requirements.
** Images are for representation purposes only
