Description
Brand - TIMKEN
Item Number - T691 TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

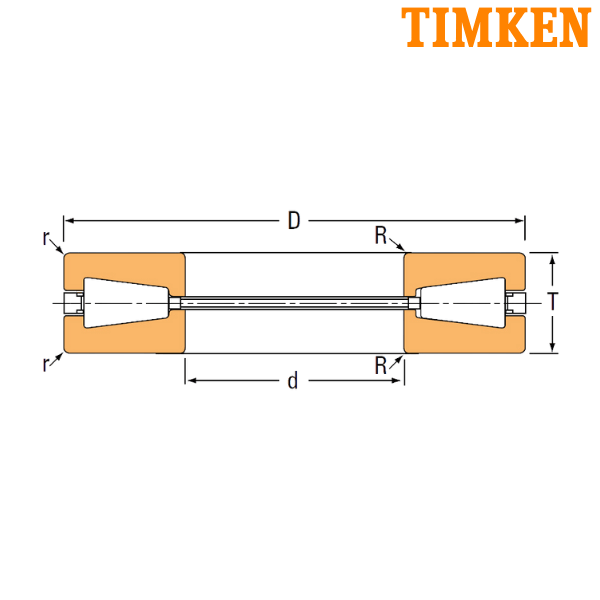

Bore Diameter (d) mm - 174.625
Bore Diameter (d) inch - 6.8750
Outer Diameter (D) mm - 358.775
Outer Diameter (D) inch - 14.1250
Width (T) mm - 82.550
Width (T) inch - 3.2500
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Static Load Rating (C0) N - 7870000
Static Load Rating (C0) lbf - 1770000
Dynamic Load Rating (Ca90) N - 620000
Dynamic Load Rating (Ca90) lbf - 139000
Weight (kg) - 43.16
Weight (lbs) - 95.15
TTHD - Heavy Duty Tapered Roller Thrust Bearing

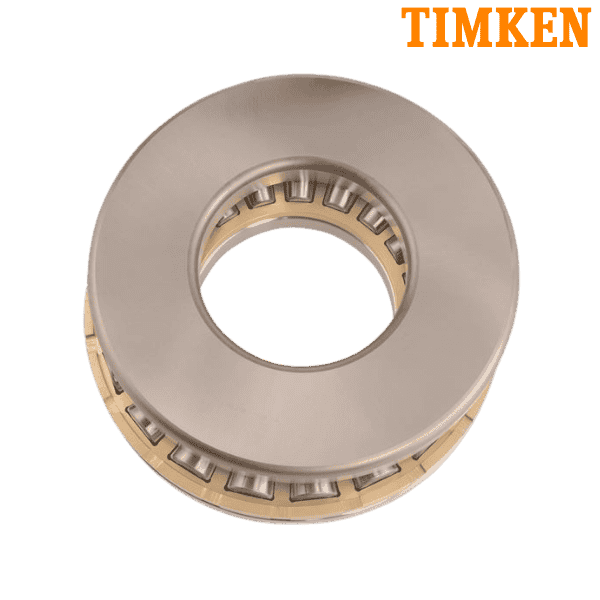

** Images are for representation purposes only
