Description
Brand - TIMKEN
Item Number - T661 TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

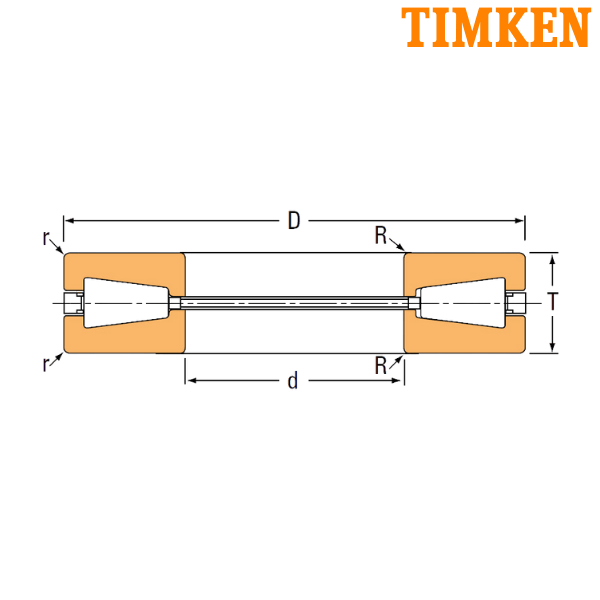

Bore Diameter (d) mm - 168.275
Bore Diameter (d) inch - 6.6250
Outer Diameter (D) mm - 304.800
Outer Diameter (D) inch - 12.0000
Width (T) mm - 69.850
Width (T) inch - 2.7500
Maximum Shaft Fillet Radius (R) mm - 6.4
Maximum Shaft Fillet Radius (R) inch - 0.25
Maximum Housing Fillet Radius (r) mm - 6.4
Maximum Housing Fillet Radius (r) inch - 0.25
Static Load Rating (C0) N - 5340000
Static Load Rating (C0) lbf - 1200000
Dynamic Load Rating (Ca90) N - 442000
Dynamic Load Rating (Ca90) lbf - 99300
Weight (kg) - 23.53
Weight (lbs) - 51.87

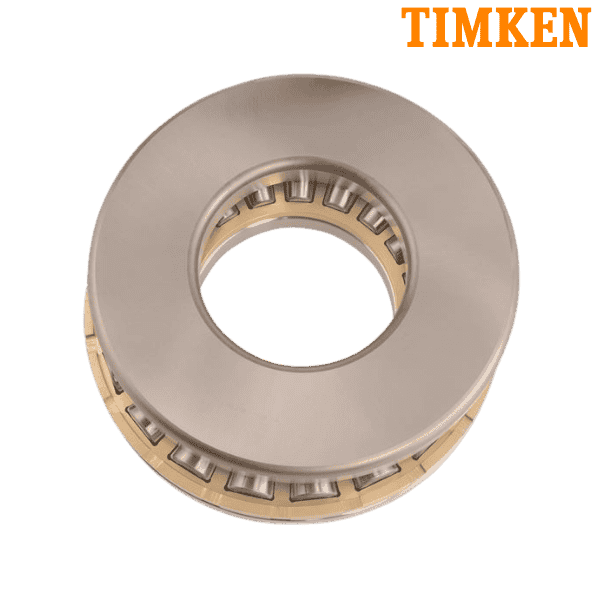

TTHD - Heavy Duty Tapered Roller Thrust Bearing
** Images are for representation purposes only
