| Inner Diameter | 152.4 mm |
| Outer Diameter | 241.3 mm |
| Height | 76.2 mm |
| Bearing Weight | 14.1 kg |
| Basic Static Load Rating, Axial | 575000.0 N |
| Chamfer Diameter | 6.6 mm |
Description

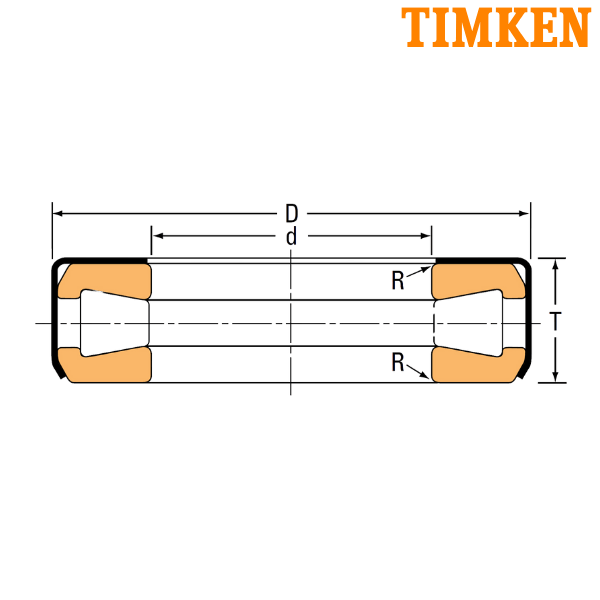

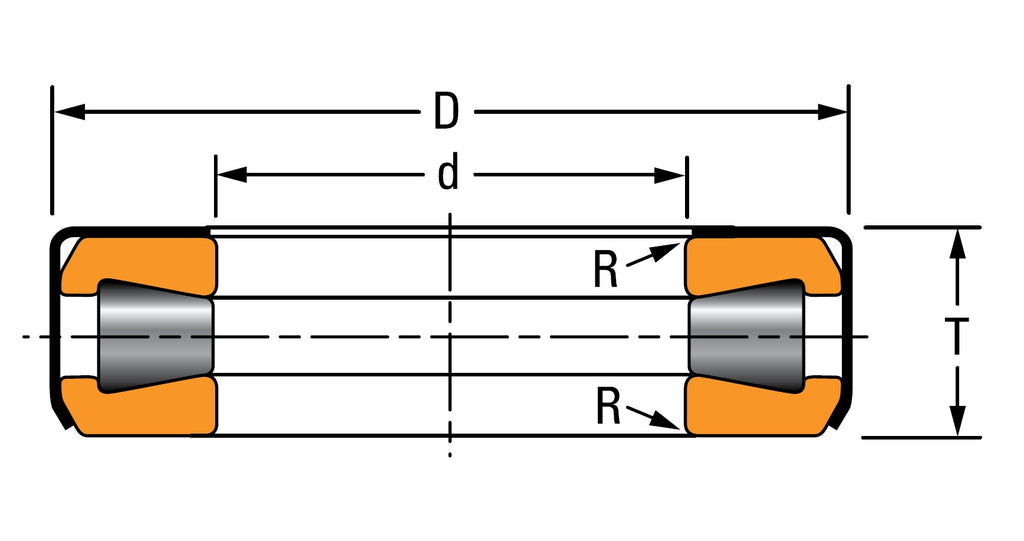

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:

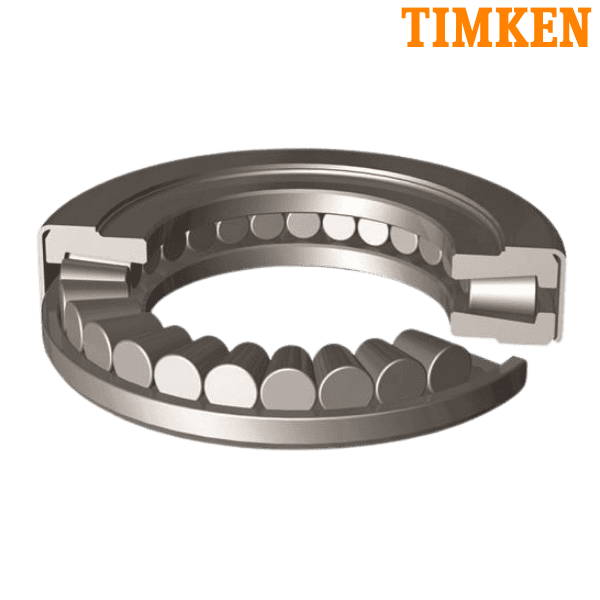

Upgrade your equipment with the Timken TTC Thrust Tapered Roller Bearing, specifically engineered to deliver reliable performance in oscillating applications. Built with a full complement, cageless design, this bearing maximizes load capacity and ensures smooth operation under demanding conditions.
-
Optimized for Oscillation: Purpose-built to handle the unique stresses of oscillating movements and applications.
-
Full Complement Design: Features a cageless, full complement of rollers for maximum load-bearing capability.
-
Heavy-Duty Components: Comprised of two high-quality thrust tapered races and durable rollers.
-
Unique TTC Retainer: Equipped with a stamped-steel assembly retainer that fully wraps around one race.
-
Hassle-Free Installation: The outside retainer securely holds all components together, preventing separation and damage during shipping and installation.
** Images are for representation purposes only
