| Inner Diameter | 127.0 mm |
| Outer Diameter | 266.7 mm |
| Height | 58.738 mm |
| Bearing Weight | 17.0 kg |
| Basic Dynamic Load Rating, Axial | 370000.0 N |
| Basic Static Load Rating, Axial | 4580000.0 N |
| Maximum Shaft Chamfer Diameter | 9.6 mm |
| Maximum Housing Chamfer Diameter | 9.6 mm |
Description

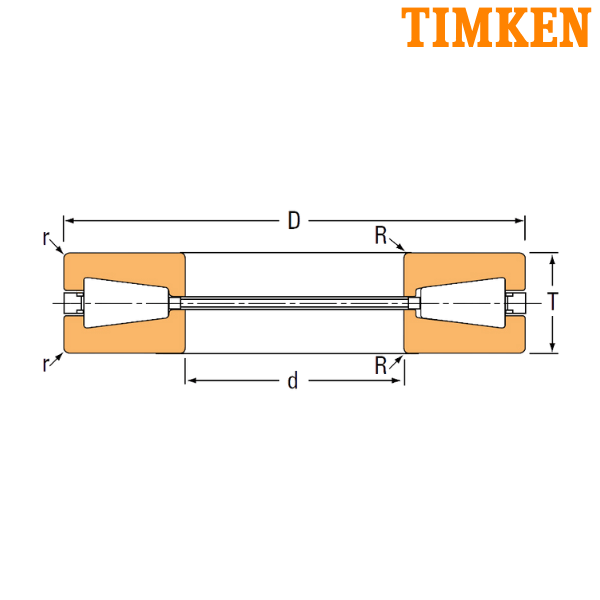

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Maximum Shaft Chamfer Diameter
r – Maximum Housing Chamfer Diameter
Other salient points to be noted:

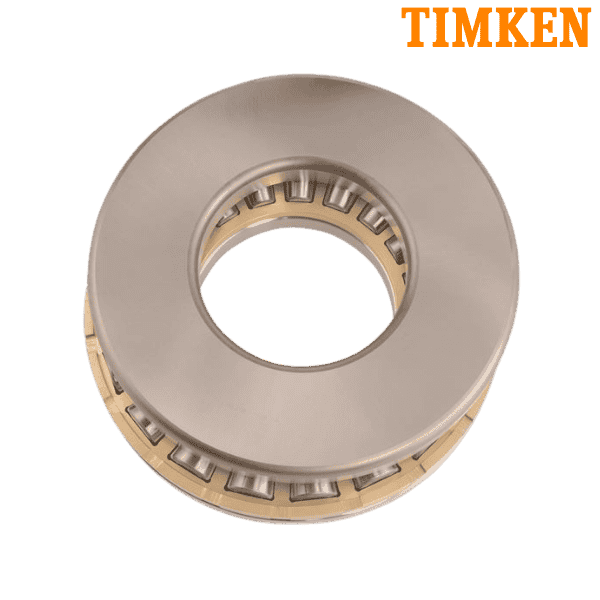

The TTHD nomenclature designates Timken’s premium line of Heavy Duty Thrust Tapered Roller Bearing engineered to manage extreme axial loads, this specific design features a precision-machined cage that accurately spaces and guides the rollers. This caged design reduces friction, making it an exceptional heavy-duty bearing capable of operating at relatively high speeds without sacrificing reliability.
Salient Features:
-
Design Type: Standard caged design for optimal roller guidance and reduced friction.
-
Core Components: Features two thrust tapered races, premium rollers, and a high-quality cage.
-
Performance: A heavy-duty powerhouse designed to maintain stability and operate efficiently at higher rotational speeds.
** Images are for representation purposes only
