T4R 47 FRN 40 EI NADELLA

Brand - NADELLA
Item Number - T4R 47 FRN 40 EI NADELLA
Category - Multi-Motion-Line Steering Carriage for FSR...M Circular Rails

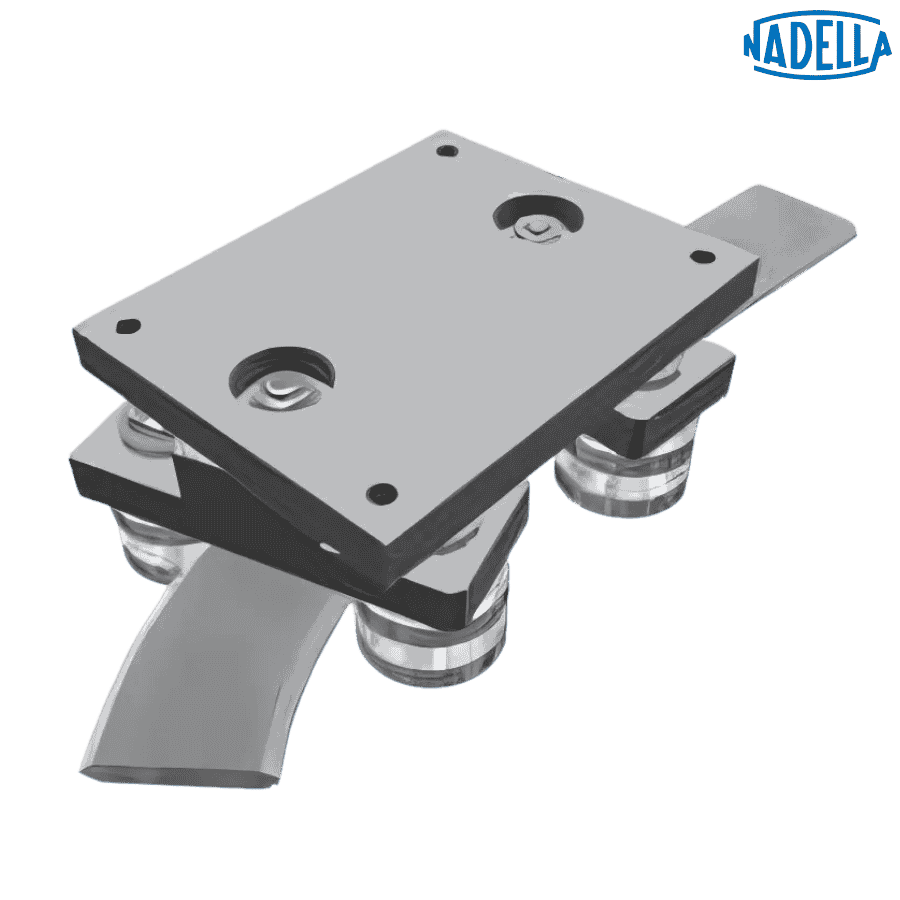

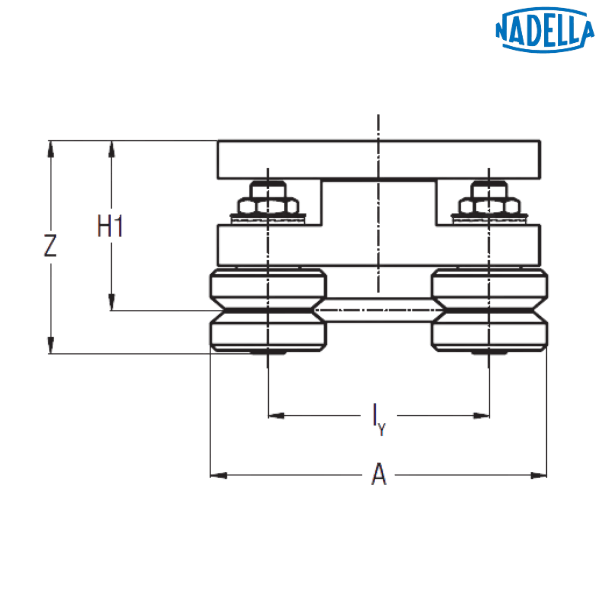

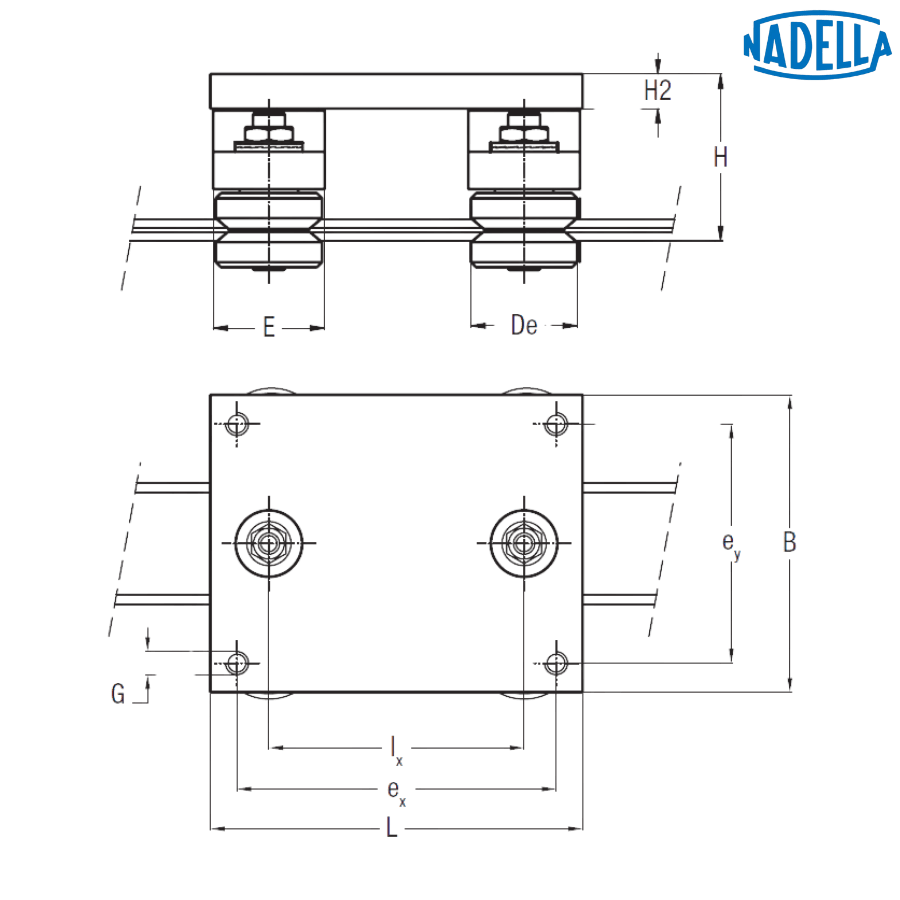

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 40 mm
Dimension (L) - 180 mm
Dimension (B) - 160 mm
Dimension (ex) - 150 mm
Dimension (ey) - 130 mm
Dimension (Ix) - 120 mm
Dimension (Iy) - 107.8 mm
Dimension (H) - 74.3 mm
Dimension (H1) - 69.3 mm
Dimension (H2) - 19 mm
Dimension (G) - M10
Dimension (A) - 147.8 mm
Dimension (E) - 56 mm
Dimension (Z) - 84.8 mm
Weight - 2.4 kg
Suggested Combinations - FSR 47 M, FS 47 M

♦ ♦ Images are for representation purposes only
