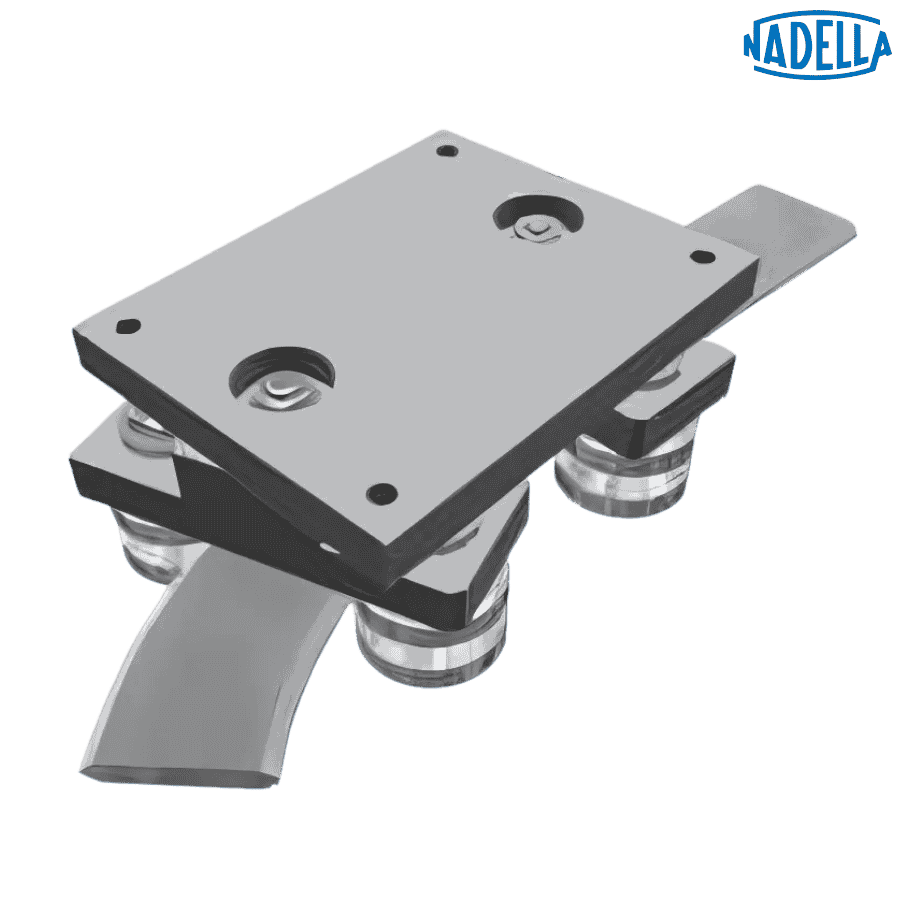

T4R 22 FRN 22 EI NADELLA

Brand - NADELLA
Item Number - T4R 22 FRN 22 EI NADELLA
Category - Multi-Motion-Line Steering Carriage for FSR...M Circular Rails

Principal Dimensions & Load Ratings (Metric):

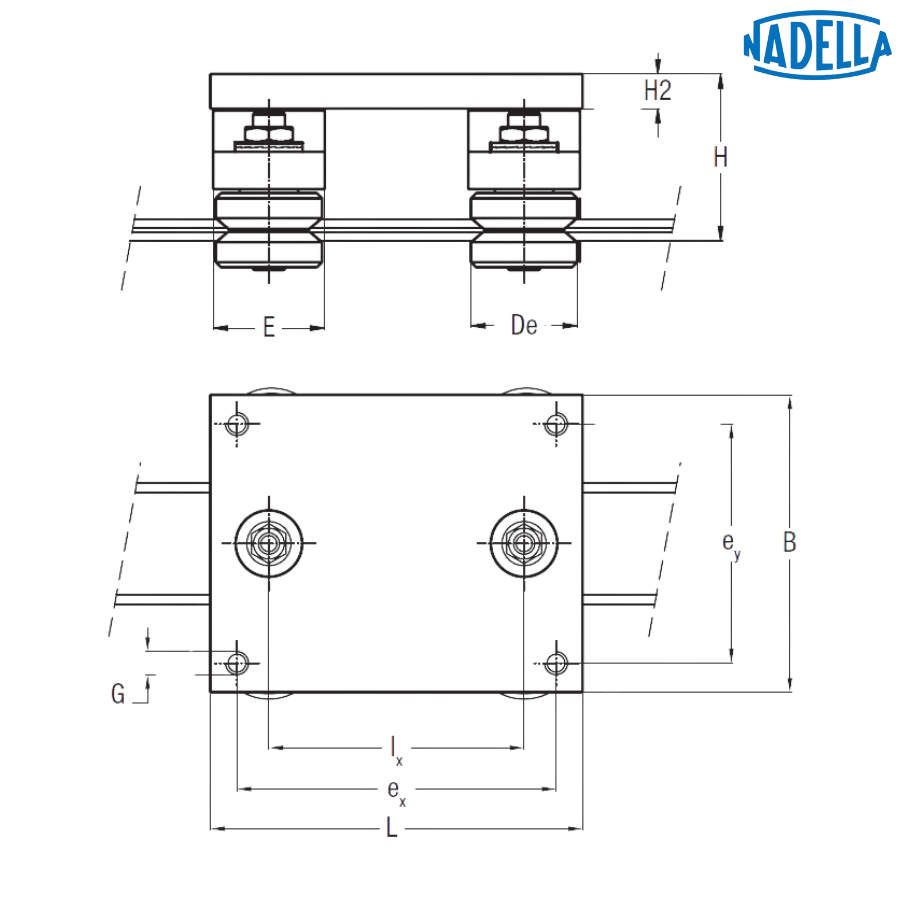

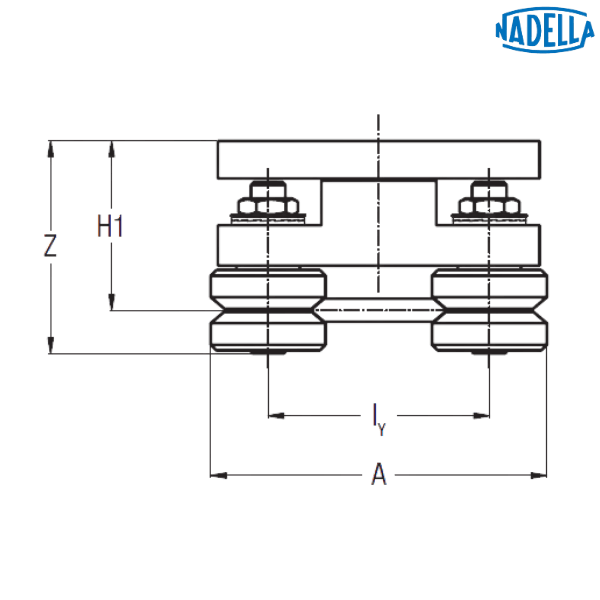

Dimension (De) - 22 mm
Dimension (L) - 80 mm
Dimension (B) - 62 mm
Dimension (ex) - 68 mm
Dimension (ey) - 50 mm
Dimension (Ix) - 50 mm
Dimension (Iy) - 43.3 mm
Dimension (H) - 45.5 mm
Dimension (H1) - 43 mm
Dimension (H2) - 12 mm
Dimension (G) - M5
Dimension (A) - 65.3 mm
Dimension (E) - 27 mm
Dimension (Z) - 53.6 mm
Weight - 0.5 kg
Suggested Combinations - FSR 22 M, FS 22 M

♦ ♦ Images are for representation purposes only
