Description
Brand - TIMKEN
Item Number - T451 TIMKEN
Category - Tapered Roller Thrust Bearing (TTHD Type)
Cage Type - Machined

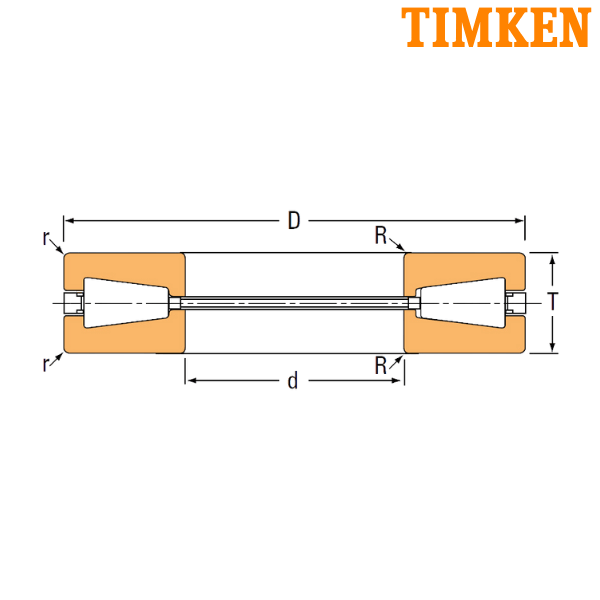

Bore Diameter (d) mm - 114.300
Bore Diameter (d) inch - 4.5000
Outer Diameter (D) mm - 250.825
Outer Diameter (D) inch - 9.8750
Width (T) mm - 53.975
Width (T) inch - 2.1250
Maximum Shaft Fillet Radius (R) mm - 4.0
Maximum Shaft Fillet Radius (R) inch - 0.16
Maximum Housing Fillet Radius (r) mm - 4.0
Maximum Housing Fillet Radius (r) inch - 0.16
Static Load Rating (C0) N - 4380000
Static Load Rating (C0) lbf - 985000
Dynamic Load Rating (Ca90) N - 352000
Dynamic Load Rating (Ca90) lbf - 79100
Weight (kg) - 14.20
Weight (lbs) - 31.31

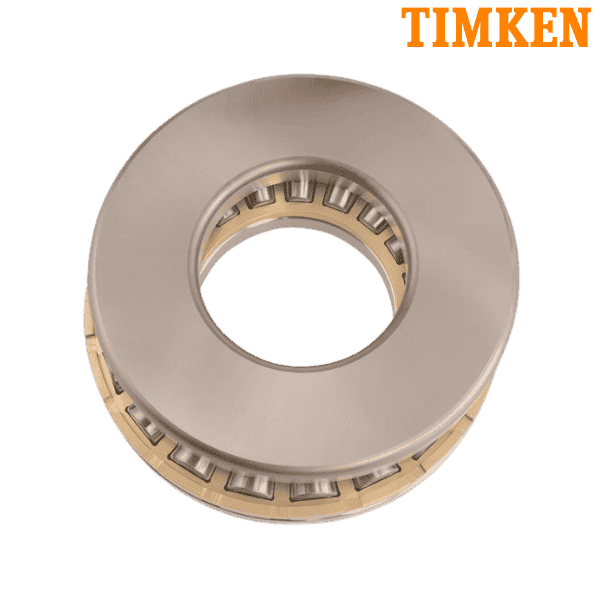

TTHD - Heavy Duty Tapered Roller Thrust Bearing
** Images are for representation purposes only
