| Inner Diameter | 102.108 mm |
| Outer Diameter | 179.619 mm |
| Height | 31.75 mm |
| Bearing Weight | 3.7 kg |
| Basic Static Load Rating, Axial | 324000.0 N |
| Chamfer Diameter | 3.0 mm |
Description

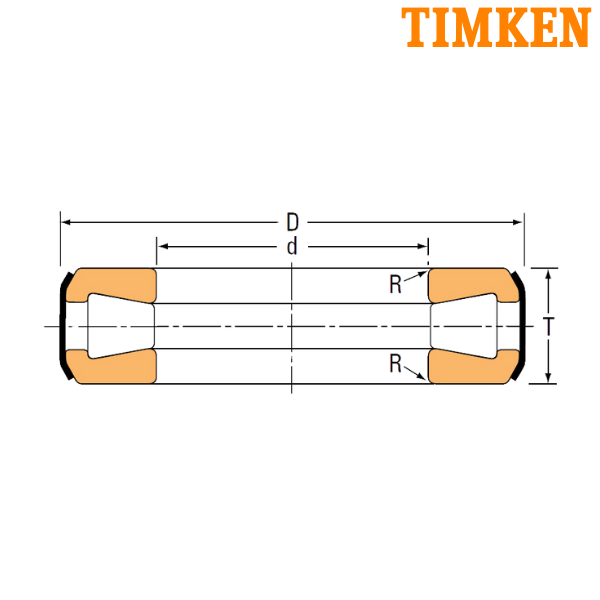

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
T – Height
R – Chamfer Diameter
Other salient points to be noted:
The Timken TTCS Thrust Tapered Roller Bearing provides exceptional durability and stability for oscillating applications. Featuring a specialized pressed retainer design, this full-complement bearing is manufactured to handle heavy loads without the need for a traditional cage, ensuring peak mechanical efficiency.
-
Optimized for Oscillation: Expertly engineered to perform reliably in oscillating machinery and environments.
-
Full Complement Design: Cageless construction utilizes a full complement of rollers to maximize strength and load capacity.
-
Heavy-Duty Components: Built with two robust thrust tapered races alongside precision rollers.
-
Specialized TTCS Retainer: Features a stamped-steel assembly retainer that is securely pressed onto the O.D. (outside diameter) faces.
-
Hassle-Free Installation: The sturdy outside retainer keeps the races and rollers perfectly intact during transit and setup, saving time and preventing component loss.
** Images are for representation purposes only
