T4 PFV 35 18 250 NADELLA

Brand - NADELLA
Item Number - T4 PFV 35 18 250* NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers Type PFV with “Gothic Arch” Profile

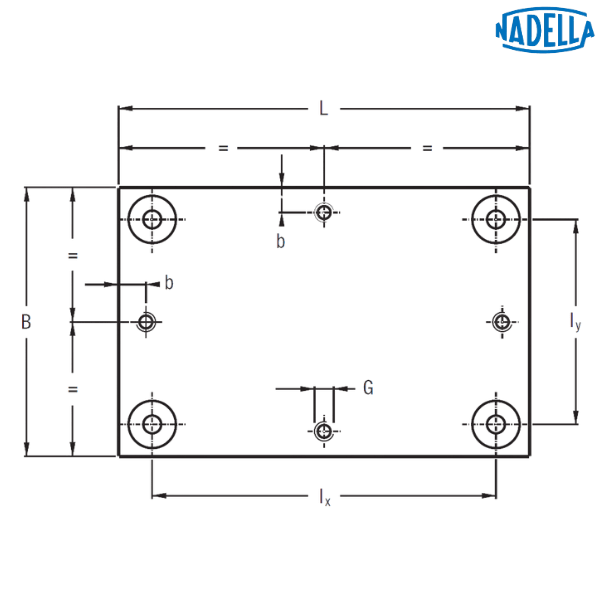

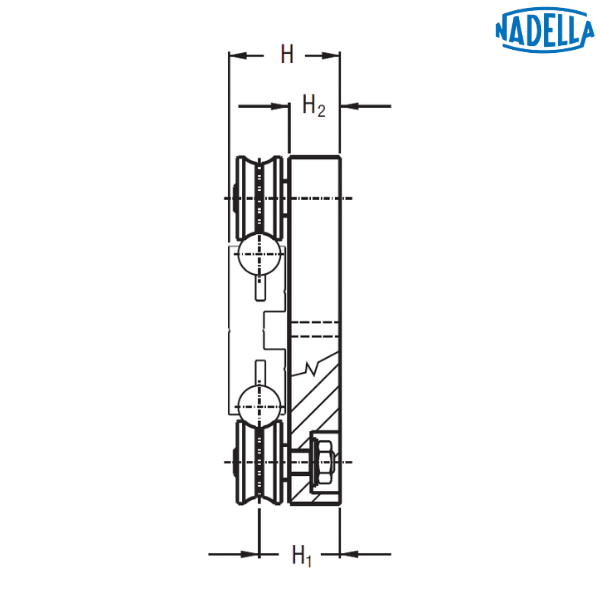

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 250 mm
Dimension (B) - 150 mm
Dimension (Ix) - 213 mm
Dimension (Iy) - 113 mm
Dimension (H) - 49 mm
Dimension (H1) - 36 mm
Dimension (H2) - 24 mm
Dimension (G) - M8
Dimension (b) - 15 mm
Weight - 2.8 kg
Recommended Pairings - DC 18.65

Description of Prefix:
T4 PFV - Carriages with anodised aluminium body with four guide rollers type PFV with “gothic arch” profile for C and DC rails of Base-Line system, and LM rails of U-Line system

Other salient points to be noted:
* Available with stainless steel guide rollers (NX)

• Carriages are complete with guide rollers
• Pressure angle α for load calculation: 60°

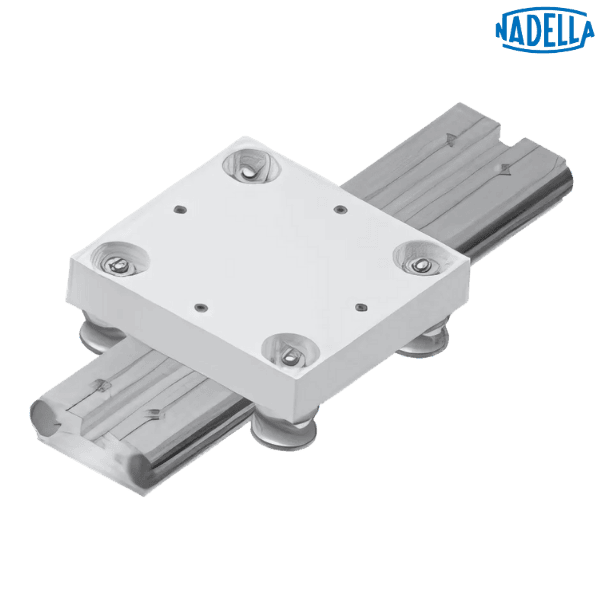

♦ ♦ Images are for representation purposes only
