T4 PFV 35 16 165 NADELLA

Brand - NADELLA
Item Number - T4 PFV 35 16 165* NADELLA

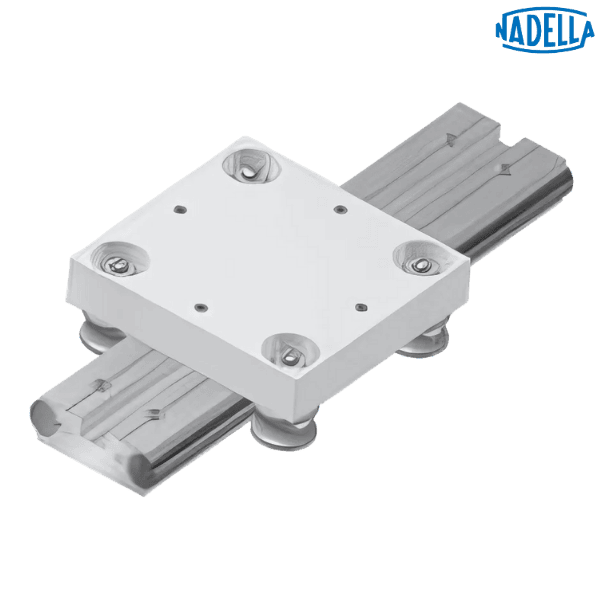

Category - Carriages with Anodised Aluminium Body with Four Guide Rollers Type PFV with “Gothic Arch” Profile

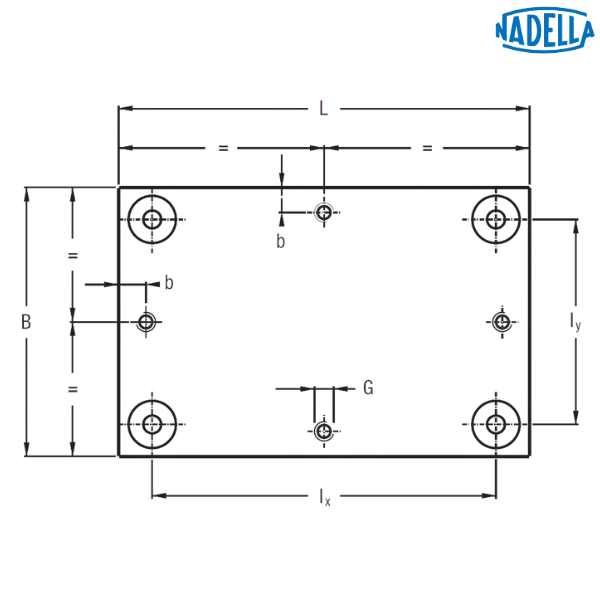

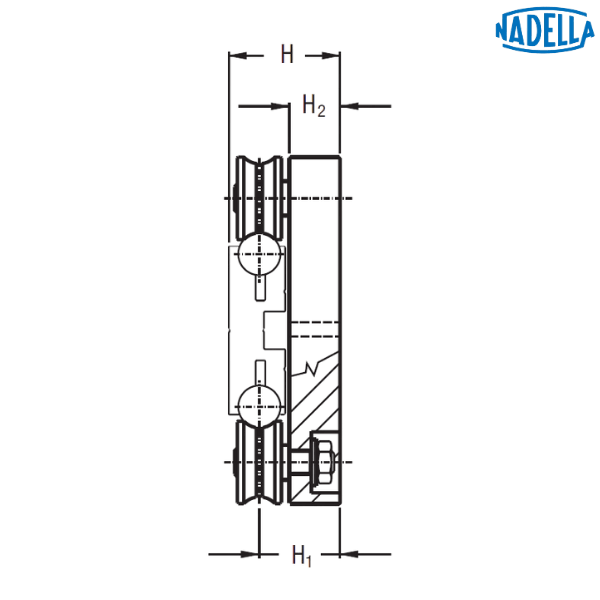

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 165 mm
Dimension (B) - 165 mm
Dimension (Ix) - 126 mm
Dimension (Iy) - 126 mm
Dimension (H) - 50.5 mm
Dimension (H1) - 36 mm
Dimension (H2) - 24 mm
Dimension (G) - M8
Dimension (b) - 15 mm
Weight - 2.1 kg
Recommended Pairings - DC 16.80

Description of Prefix:
T4 PFV - Carriages with anodised aluminium body with four guide rollers type PFV with “gothic arch” profile for C and DC rails of Base-Line system, and LM rails of U-Line system

Other salient points to be noted:
* Available with stainless steel guide rollers (NX)

• Carriages are complete with guide rollers
• Pressure angle α for load calculation: 60°

♦ ♦ Images are for representation purposes only
