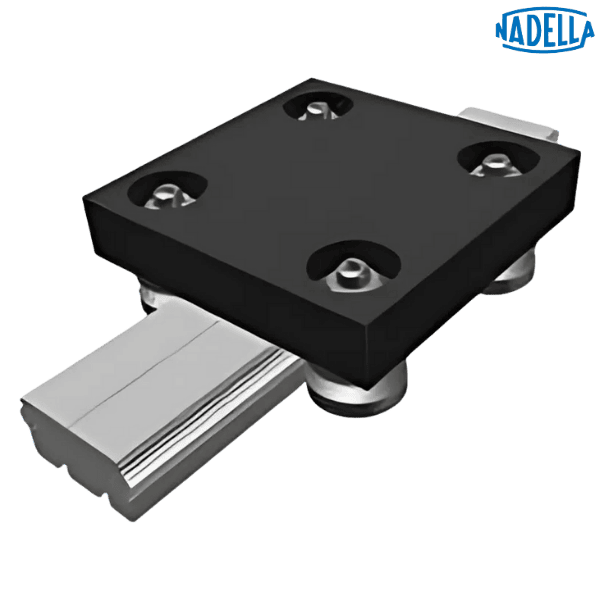

T4 FR 52 260 NADELLA

Brand - NADELLA
Item Number - T4 FR 52 260 NADELLA
Category - Carriages with Anodised Aluminium Body with Four Guide Rollers

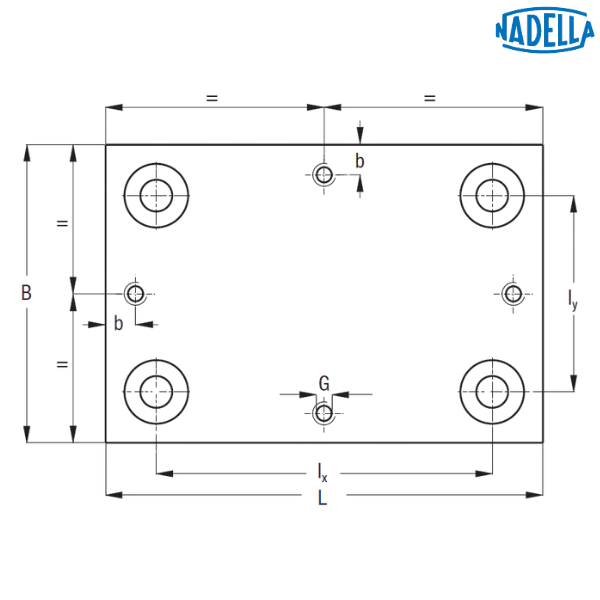

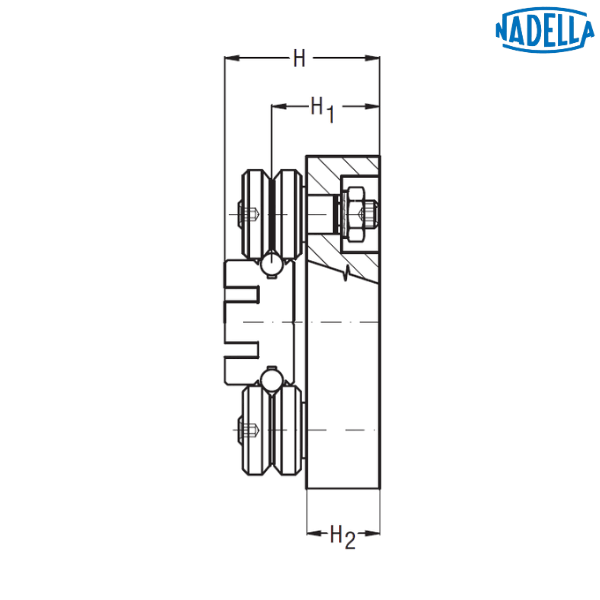

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 260 mm
Dimension (B) - 190 mm
Dimension (Ix) - 203 mm
Dimension (Iy) - 123 mm
Dimension (H) - 82.8 mm
Dimension (H1) - 58.8 mm
Dimension (H2) - 39 mm
Dimension (G) - M10
Dimension (b) - 20 mm
Weight - 6.8 kg
Suggested Combinations - FWS 52

♦ ♦ Images are for representation purposes only
