T4 FR 40 220 NADELLA

Brand - NADELLA
Item Number - T4 FR 40 220 NADELLA

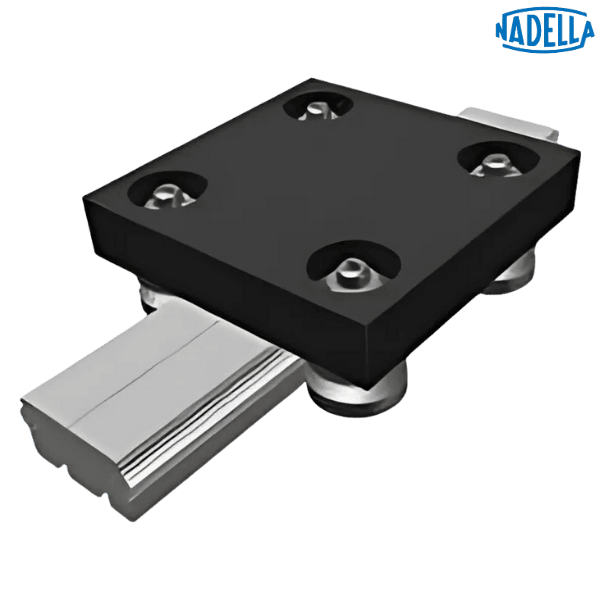

Category - Carriages with Anodised Aluminium Body with Four Guide Rollers

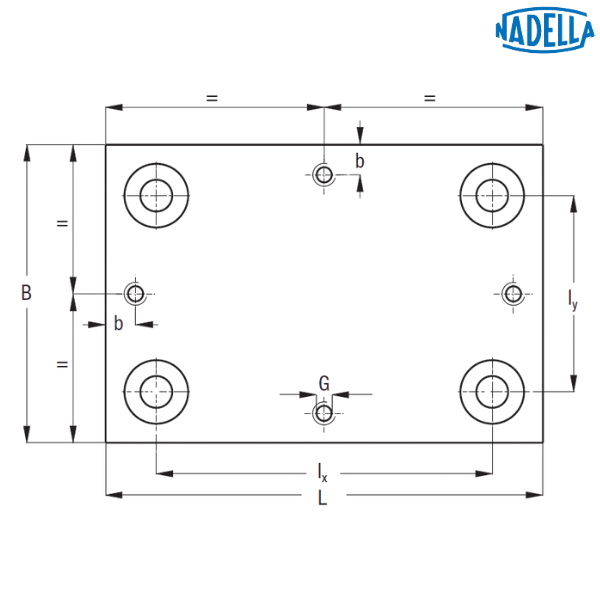

Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 220 mm
Dimension (B) - 150 mm
Dimension (Ix) - 169 mm
Dimension (Iy) - 98.8 mm
Dimension (H) - 63.5 mm
Dimension (H1) - 44.5 mm
Dimension (H2) - 29 mm
Dimension (G) - M8
Dimension (b) - 15 mm
Weight - 3.4 kg
Suggested Combinations - FWS 40

♦ ♦ Images are for representation purposes only
